LTC-4624E

Active

Diodes Inc

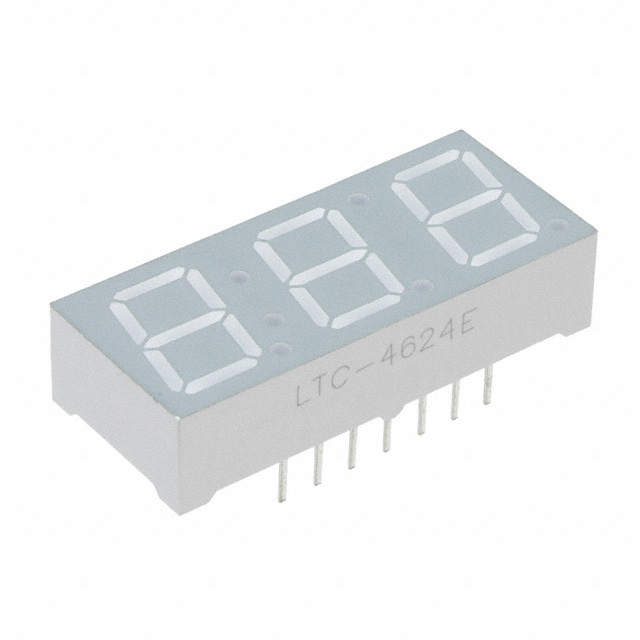

DISP 7SEG 0.39" TRP OR-RED 16DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTC-4624E

Active

Diodes Inc

DISP 7SEG 0.39" TRP OR-RED 16DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTC-4624E

Color	Orange-Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.39 in
Digit/Alpha Size	10 mm
Display Type	7-Segment
Millicandela Rating	2.2 mcd
Number of Characters	3
Package / Case	16-DIP
Package / Case	10.16 mm
Package / Case	10.16 mm
Power Dissipation (Max) [Max]	75 mw
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	630 nm

LTC-4624 Series

Part	Wavelength - Peak	Millicandela Rating	Color	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Common Pin	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Current - Test	Number of Characters	Display Type
Diodes Inc LTC-4624E	630 nm	2.2 mcd	Orange-Red	0.39 in	10 mm	75 mw	Common Anode	2 V	16-DIP	10.16 mm	10.16 mm	20 mA	3	7-Segment
Diodes Inc LTC-4624P	697 nm	0.8 mcd	Red	0.39 in	10 mm	40 mW	Common Anode	2.1 V	12 Leads 15-DIP		10.16 mm	20 mA	3	7-Segment
Diodes Inc LTC-4624E-01

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1003	$ 1.24
LCSC	Piece	1	$ 0.74
		204	$ 0.30
		493	$ 0.28
		1003	$ 0.28

Description

General part information

LTC-4624 Series

Display Modules - LED Character and Numeric Orange-Red 7-Segment 3 Character Common Anode 2V 20mA 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) 16-DIP (0.400", 10.16mm)
