SSI-RM3091SYD-150

Active

Lumex Opto/Components Inc.

LED 3MM SUP YEL 6"LDS REAR PNLMT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM SUP YEL 6"LDS REAR PNLMT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSI-RM3091SYD-150	SSI-RM3091 Series

	-	-
Current	30 mA	20 - 30 mA
Lamp Color	Yellow	Orange, Yellow, Green, Red, Blue
Lens Color	Yellow	Orange, Yellow, White, Red, Green, Blue
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	100 mcd	20 - 100 mcd
Millicandela Rating	-	20 mcd
Millicandela Rating	-	30 mcd
Panel Cutout Dimensions	0.2 in	0.2 in
Panel Cutout Dimensions	5.08 mm	5.08 mm
Panel Cutout Shape	Round	Round
Type	LED	LED
Viewing Angle	60 °	60 °
Voltage	2.1 V	2 - 3.5 V
Wavelength - Peak	590 nm	565 - 636 nm

LED 3MM SUP ORNG 6"LDS REARPNLMT

Part	Lens Transparency	Voltage	Millicandela Rating	Panel Cutout Shape	Wavelength - Peak	Current	Lamp Color	Viewing Angle	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Type	Lens Color	Lens Size	Lens Size	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSI-RM3091SOD-150	Diffused	2 V	100 mcd	Round	610 nm	30 mA	Orange	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Orange	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091SYD-150	Diffused	2.1 V	100 mcd	Round	590 nm	30 mA	Yellow	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Yellow	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091IGW-150	Diffused	2 V, 2.2 V		Round	565 nm, 635 nm	20 mA, 20 mA	Green, Red	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	White	3 mm	T-1	20 mcd	30 mcd
Lumex Opto/Components Inc. SSI-RM3091ID-150	Diffused	2 V	30 mcd	Round	635 nm	30 mA	Red	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Red	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091SUGD1561
Lumex Opto/Components Inc. SSI-RM3091SUGD-150	Diffused	2.2 V	50 mcd	Round		25 mA	Green	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Green	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091SID-150	Diffused	2 V	100 mcd	Round	636 nm	30 mA	Red	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Red	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091USBD-150	Diffused	3.5 V	60 mcd	Round		30 mA	Blue	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Blue	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091GD-150	Diffused	2.2 V	20 mcd	Round	565 nm	25 mA	Green	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Green	3 mm	T-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

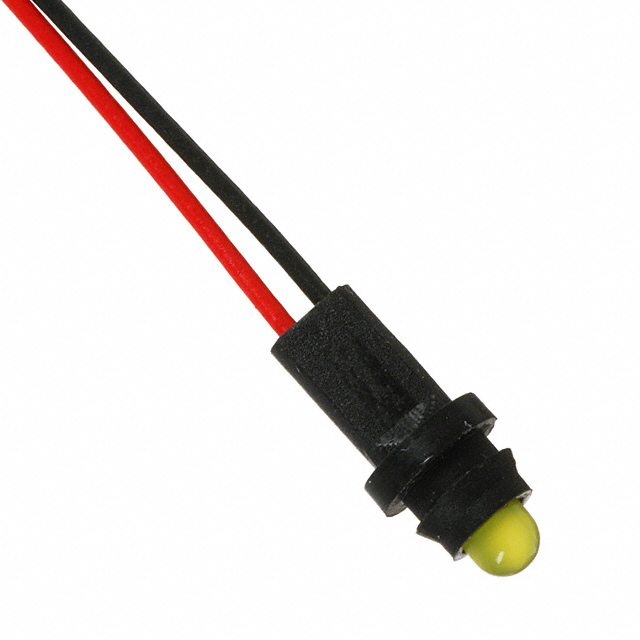

LED Panel Indicator Yellow Diffused 60° 2.1V 30mA Wire Leads - 6" (152.40mm)
