SSI-RM3091SID-150

Active

Lumex Opto/Components Inc.

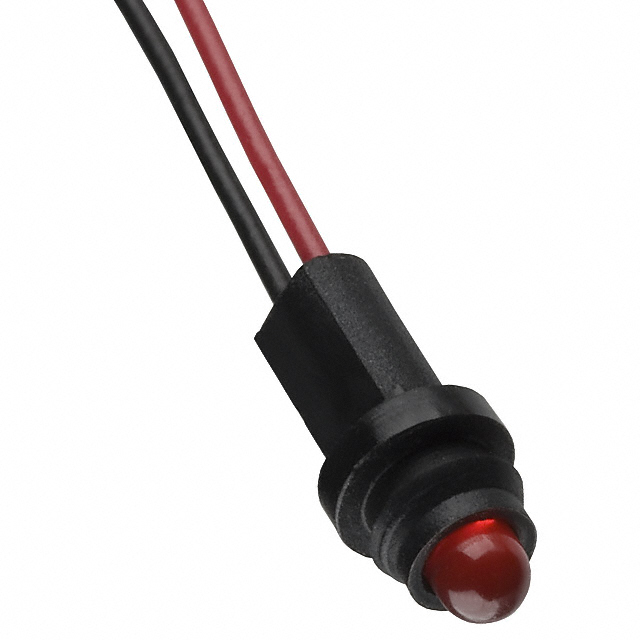

LED 3MM ALINGAP RED 6"LD REAR MT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM ALINGAP RED 6"LD REAR MT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SSI-RM3091SID-150	SSI-RM3091 Series

	-	-
Current	30 mA	20 - 30 mA
Lamp Color	Red	Orange, Yellow, Green, Red, Blue
Lens Color	Red	Orange, Yellow, White, Red, Green, Blue
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	100 mcd	20 - 100 mcd
Millicandela Rating	-	20 mcd
Millicandela Rating	-	30 mcd
Panel Cutout Dimensions	0.2 in	0.2 in
Panel Cutout Dimensions	5.08 mm	5.08 mm
Panel Cutout Shape	Round	Round
Type	LED	LED
Viewing Angle	60 °	60 °
Voltage	2 V	2 - 3.5 V
Wavelength - Peak	636 nm	565 - 636 nm

LED 3MM SUP ORNG 6"LDS REARPNLMT

Part	Lens Transparency	Voltage	Millicandela Rating	Panel Cutout Shape	Wavelength - Peak	Current	Lamp Color	Viewing Angle	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Type	Lens Color	Lens Size	Lens Size	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSI-RM3091SOD-150	Diffused	2 V	100 mcd	Round	610 nm	30 mA	Orange	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Orange	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091SYD-150	Diffused	2.1 V	100 mcd	Round	590 nm	30 mA	Yellow	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Yellow	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091IGW-150	Diffused	2 V, 2.2 V		Round	565 nm, 635 nm	20 mA, 20 mA	Green, Red	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	White	3 mm	T-1	20 mcd	30 mcd
Lumex Opto/Components Inc. SSI-RM3091ID-150	Diffused	2 V	30 mcd	Round	635 nm	30 mA	Red	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Red	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091SUGD1561
Lumex Opto/Components Inc. SSI-RM3091SUGD-150	Diffused	2.2 V	50 mcd	Round		25 mA	Green	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Green	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091SID-150	Diffused	2 V	100 mcd	Round	636 nm	30 mA	Red	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Red	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091USBD-150	Diffused	3.5 V	60 mcd	Round		30 mA	Blue	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Blue	3 mm	T-1
Lumex Opto/Components Inc. SSI-RM3091GD-150	Diffused	2.2 V	20 mcd	Round	565 nm	25 mA	Green	60 °	0.2 in	5.08 mm	Round with Domed Top	LED	Green	3 mm	T-1
