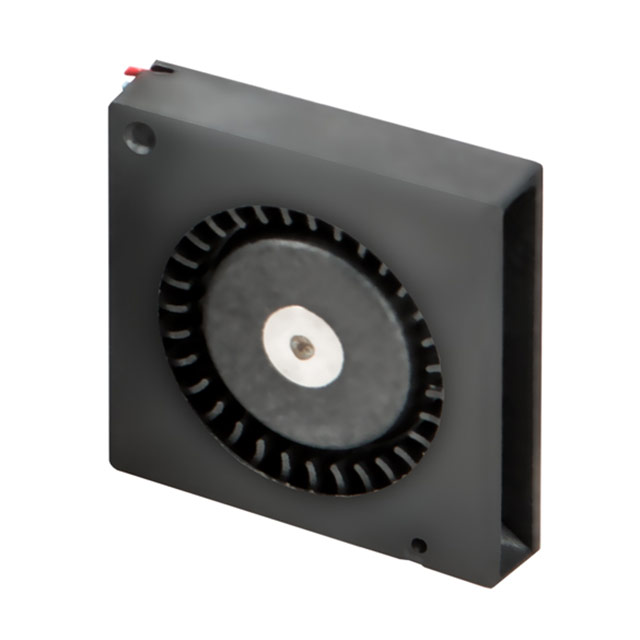

BSB01703HA3-00CAJ

Active

Delta Electronics

FAN BLOWER 17X3.4MM 3VDC RECT

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 17X3.4MM 3VDC RECT

Technical Specifications

Parameters and characteristics for this part

Specification	BSB01703HA3-00CAJ

Air Flow	0.23 CFM
Air Flow	0.006 m³/min
Bearing Type	Sleeve
Current Rating (Amps)	60 mA
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	26.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	180 mW
RPM	12000 RPM
Size / Dimension [x]	17 mm
Size / Dimension [y]	17 mm
Static Pressure	45.3 Pa
Static Pressure	0.182 in H2O
Termination	3 Position Rectangular Connector
Voltage - Rated	3 VDC
Voltage Range [Max]	3.5 VDC
Voltage Range [Min]	2 V
Weight	1.36 g
Weight	0.003 lb
Width [x]	3.4 mm

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Termination	Lifetime @ Temp.	Fan Type	Material - Blade	Material - Frame	RPM	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Noise	Static Pressure	Static Pressure	Power (Watts)	Width [x]	Current Rating (Amps)	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Features
Delta Electronics BSB01703HA3-00CAJ	3 VDC	-10 °C	-10 °C	60 °C	60 °C	3 Position Rectangular Connector	30000 Hrs	Blower	Plastic	Plastic	12000 RPM	Sleeve	2 V	3.5 VDC	0.23 CFM	0.006 m³/min	26.5 dB	45.3 Pa	0.182 in H2O	180 mW	3.4 mm	60 mA	1.36 g	0.003 lb	17 mm	17 mm	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 3VDC Square - 17mm L x 17mm H Sleeve 0.230 CFM (0.006m³/min) 3 Position Rectangular Connector
