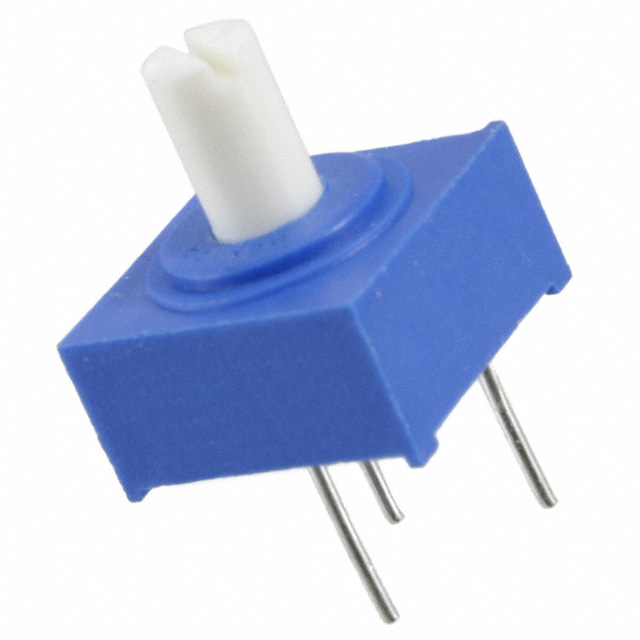

3315Y-025-006L
ActiveBourns Inc.
ENCODER - 9MM SQ /TRAY PACKAGING ROHS COMPLIANT: YES
3315Y-025-006L
ActiveBourns Inc.
ENCODER - 9MM SQ /TRAY PACKAGING ROHS COMPLIANT: YES
Description
General part information
3315Y Series
Rotary Encoder Mechanical 6 Quadrature (Incremental) Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 3315Y-025-006L |
|---|---|
| Actuator Diameter | 3.175 mm |
| Actuator Type | Slotted End |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Mechanical |
| Mounting Type | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 6 |
| Rotational Life (Cycles Min) | 100 K |
| Termination Style | PC Pin |
