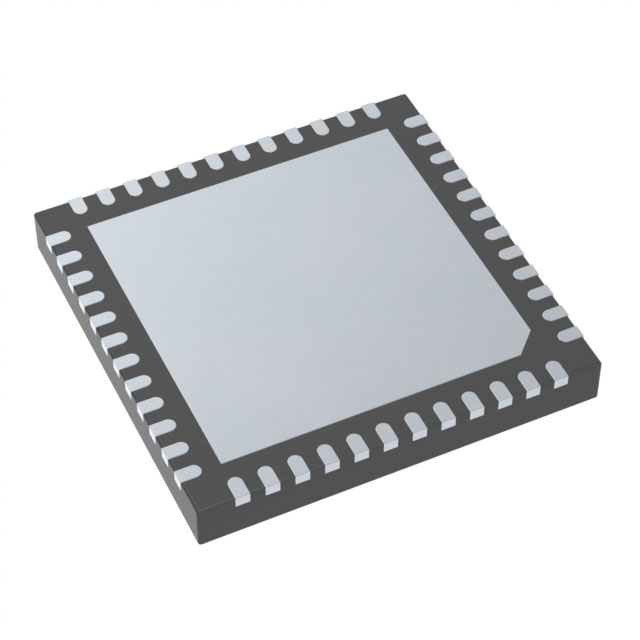

SI52208-A01AGM

Active

Skyworks Solutions Inc.

LVCMOS CLOCK GENERATOR

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

LVCMOS CLOCK GENERATOR

Technical Specifications

Parameters and characteristics for this part

Specification	SI52208-A01AGM

Differential - Input:Output	No/Yes
Input	Crystal, Clock
Main Purpose	Clock Generator, PCI Express (PCIe)
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	HCSL, LVCMOS
Package / Case	48-VFQFN Exposed Pad
PLL	True
Ratio - Input:Output	1:8
Supplier Device Package	48-QFN (6x6)
Voltage - Supply [Max]	1.8 V
Voltage - Supply [Min]	1.5 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output	Supplier Device Package	Output	Package / Case	Differential - Input:Output	Number of Circuits	Input	Main Purpose	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	PLL
Skyworks Solutions Inc. SI52208-A01AGM	85 °C	-40 °C	1:8	48-QFN (6x6)	HCSL LVCMOS	48-VFQFN Exposed Pad	No/Yes	1	Clock Crystal	Clock Generator PCI Express (PCIe)	Surface Mount	1.8 V	1.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PCI Express (PCIe), Clock Generator IC 100MHz 1 Output 48-QFN (6x6)
