A219V,AL

Active

Serpac

BOX ABS ALMOND 4.25"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 4.25"L X 2.6"W

Technical Specifications

Parameters and characteristics for this part

Specification	A219V,AL

Area (L x W)	11.2 in²
Area (L x W)	72 cm²
Color	Almond
Container Type	Box
Design	Split Sides and End Panel(s)
Features	PCB Supports, Battery Compartment, 9V and AA
Height [z]	1.12 "
Height [z]	28.45 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	4.25 in
Size / Dimension [x]	107.95 mm
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	1.78 mm
Thickness	0.07 in
Weight	0.11 lb
Weight	49.9 g

Part	Thickness	Thickness	Weight	Weight	Area (L x W)	Area (L x W)	Ratings	Features	Container Type	Design	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Height [z]	Height [z]	Color
Serpac A219V,GY	1.78 mm	0.07 in	0.11 lb	49.9 g	11.2 in²	72 cm²	IP40	9V and AA Battery Compartment PCB Supports	Box	Split Sides and End Panel(s)	Plastic ABS	2.6 "	4.25 in	107.95 mm	66.04 mm	UL94 HB	1.12 "	28.45 mm	Gray
Serpac A219V,AL	1.78 mm	0.07 in	0.11 lb	49.9 g	11.2 in²	72 cm²	IP40	9V and AA Battery Compartment PCB Supports	Box	Split Sides and End Panel(s)	Plastic ABS	2.6 "	4.25 in	107.95 mm	66.04 mm	UL94 HB	1.12 "	28.45 mm	Almond

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.69

General part information

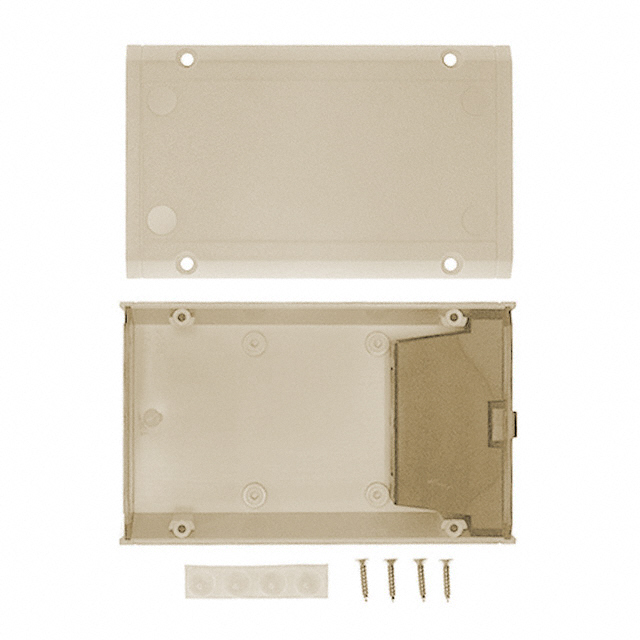

Box Plastic, ABS Almond Split Sides and End Panel(s) 4.250" L x 2.600" W (107.95mm x 66.04mm) X 1.120" (28.45mm)

Technical documentation and resources

No documents available
