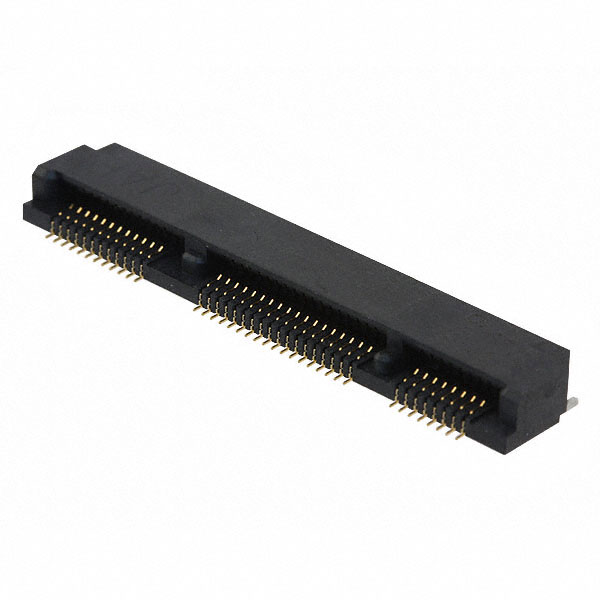

MM60-76B2-G1-R1000
ObsoleteJAE Electronics
CONN PCI EXP MIN FML 76POS 0.031
Deep-Dive with AI
Search across all available documentation for this part.
MM60-76B2-G1-R1000
ObsoleteJAE Electronics
CONN PCI EXP MIN FML 76POS 0.031
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MM60-76B2-G1-R1000 |
|---|---|
| Card Thickness | 0.039 in |
| Card Thickness | 1 mm |
| Card Type | PCI Express Mini Card |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 76 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MM60-76B Series
76 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm)
