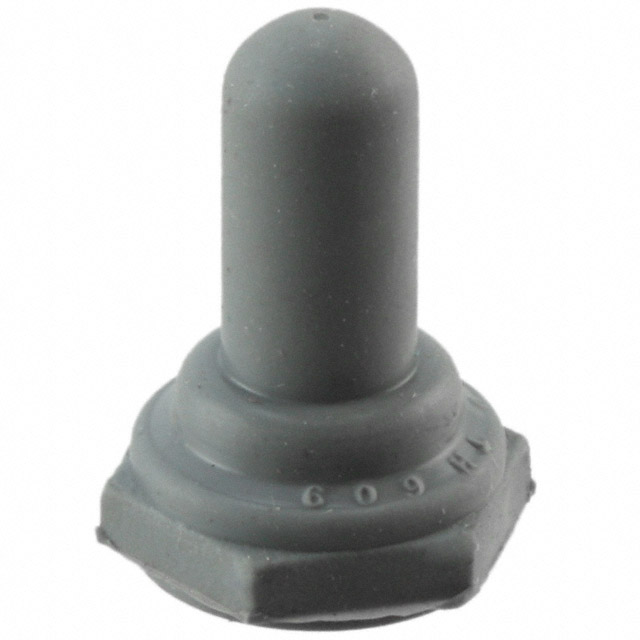

6600-63-06

Active

ELECTROSWITCH

TOGGLE FULL BOOT GRAY

Search across all available documentation for this part.

Active

ELECTROSWITCH

TOGGLE FULL BOOT GRAY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6600-63-06	6600-63 Series

Actuator Diameter [diameter]	0.209 "	0.1 - 0.209 "
Actuator Diameter [diameter]	5.31 mm	2.54 - 5.31 mm
Color	Gray	Black, Gray
For Use With/Related Products	6600 Series	6600 Series
Ingress Protection	Environment Sealed	Environment Sealed
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension [z]	0.945 "	0.412 - 0.945 in
Size / Dimension [z]	24 mm	10.46 - 24 mm
Thread Size	15/32-32 NS-2B	15/32-32 NS-2B
Type	Full Boot, Toggle	Full Boot, Toggle, Half Boot

TOGGLE FULL BOOT BLACK

Part	Mounting Feature	Type	Material	Size / Dimension [z]	Size / Dimension [z]	Thread Size	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Color	Ingress Protection	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]
ELECTROSWITCH 6600-63-03	Front of Panel	Full Boot, Toggle	Silicone Rubber	0.885 in	22.48 mm	15/32-32 NS-2B	0.209 "	5.31 mm	Black	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-04	Front of Panel	Full Boot, Toggle	Silicone Rubber	0.885 in	22.48 mm	15/32-32 NS-2B	0.209 "	5.31 mm	Gray	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-01	Front of Panel	Half Boot, Toggle	Silicone Rubber	0.412 in	10.46 mm	15/32-32 NS-2B	0.1 in	2.54 mm	Black	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-05	Front of Panel	Full Boot, Toggle	Silicone Rubber	0.945 "	24 mm	15/32-32 NS-2B	0.209 "	5.31 mm	Black	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-06	Front of Panel	Full Boot, Toggle	Silicone Rubber	0.945 "	24 mm	15/32-32 NS-2B	0.209 "	5.31 mm	Gray	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-02	Front of Panel	Half Boot, Toggle	Silicone Rubber	0.412 in	10.46 mm	15/32-32 NS-2B	0.1 in	2.54 mm	Gray	Environment Sealed	6600 Series	204 °C	-70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOGGLE FULL BOOT GRAY
