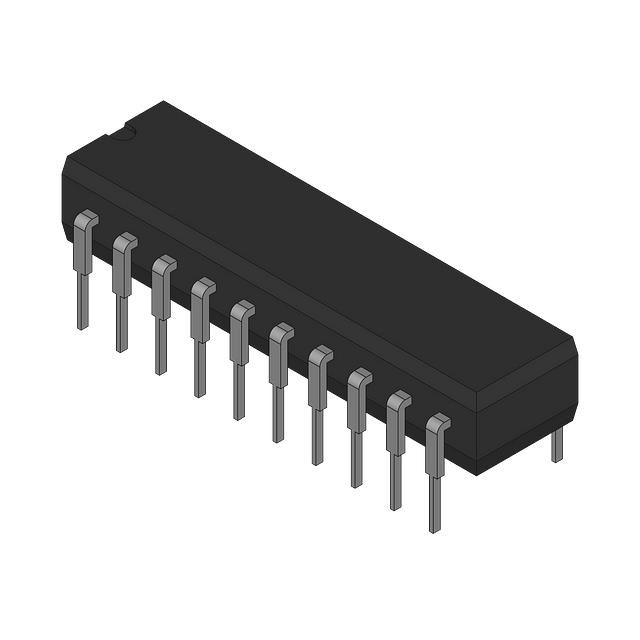

74HC564P-E

Active

Renesas Electronics Corporation

IC FF D-TYPE SNGL 8BIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHD74HC564 HD74HC574 Datasheet

74HC564P-E

Active

Renesas Electronics Corporation

IC FF D-TYPE SNGL 8BIT

Deep-Dive with AI

DocumentsHD74HC564 HD74HC574 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	74HC564P-E	74HC564 Series

Clock Frequency	137 MHz	137 MHz
Current - Output High, Low [custom]	7.8 mA	7.8 mA
Current - Output High, Low [custom]	7.8 mA	7.8 mA
Current - Quiescent (Iq)	8 ÁA	8 ÁA
Function	Standard	Standard
Input Capacitance	3.5 pF	3.5 pF
Max Propagation Delay @ V, Max CL	28 ns	28 ns
Number of Bits per Element	8	8
Number of Elements	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Tri-State, Inverted	Tri-State, Inverted
Trigger Type	Positive Edge	Positive Edge
Type	D-Type	D-Type
Voltage - Supply [Max]	6 V	6 V
Voltage - Supply [Min]	2 V	2 V

74HC564 Series

HD/RD74HC Series

Part	Number of Bits per Element	Max Propagation Delay @ V, Max CL	Trigger Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance	Current - Quiescent (Iq)	Number of Elements	Function	Clock Frequency	Type
Renesas Electronics Corporation 74HC564FPEL-E	8	28 ns	Positive Edge	2 V	6 V	Tri-State, Inverted	7.8 mA	7.8 mA	-40 °C	125 °C	3.5 pF	8 ÁA	1	Standard	137 MHz	D-Type
Renesas Electronics Corporation 74HC564P-E	8	28 ns	Positive Edge	2 V	6 V	Tri-State, Inverted	7.8 mA	7.8 mA	-40 °C	125 °C	3.5 pF	8 ÁA	1	Standard	137 MHz	D-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	296	$ 1.02

Description

General part information

74HC564 Series

The most standard series of the family of 5V drive bipolar general-purpose logic ICs. It has an over 20-year track record and high market penetration.

Documents

Technical documentation and resources

HD74HC564 HD74HC574 Datasheet

Datasheet
