Q-2H03K0001048i

Active

Amphenol Custom Cable

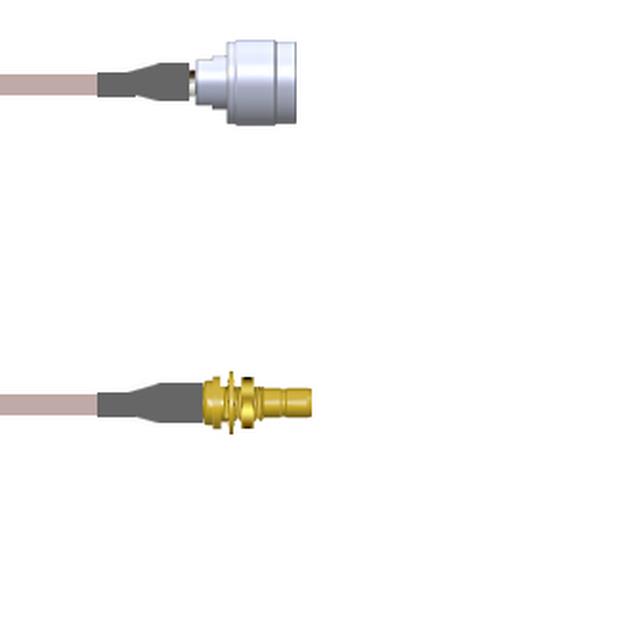

COAX CBL SMB TO N-TYPE 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H03K0001048i

Active

Amphenol Custom Cable

COAX CBL SMB TO N-TYPE 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H03K0001048i

1st Connector	SMB Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2H03K0 Series

Part	1st Contact Gender	Length	Length	2nd Connector	1st Connector Mounting Feature	2nd Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	2nd Contact Gender	Features	Cable Type	Color	Style	1st Connector	1st Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2H03K0001024i	Male	24 "	609.6 mm	N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount
Amphenol Custom Cable Q-2H03K0001006i	Male	6 in	152.4 mm	N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount
Amphenol Custom Cable Q-2H03K0001012i	Male	12 "	304.8 mm	N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount
Amphenol Custom Cable Q-2H03K0001002M	Male	78.7 in	2 m	N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount	6.6 ft
Amphenol Custom Cable Q-2H03K0001.25M	Male			N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount		9.843 "	250 mm
Amphenol Custom Cable Q-2H03K0001009i	Male	9 "	228.6 mm	N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount
Amphenol Custom Cable Q-2H03K0001048i	Male	48 in	1200 mm	N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount	4 ft
Amphenol Custom Cable Q-2H03K00010.5M	Male	19.69 "	50 cm	N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount
Amphenol Custom Cable Q-2H03K0001.75M	Male	29.53 "	750 mm	N-Type Plug	Bulkhead - Front Side Nut	Free Hanging (In-Line)	4 GHz	50 Ohms	Male	Shielded	RG-178	Copper	SMB to N-Type	SMB Jack	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.95
		25	$ 81.40
		50	$ 79.85
		100	$ 78.30
		250	$ 76.74

Description

General part information

Q-2H03K0 Series

Cable Assembly Coaxial SMB to N-Type RG-178 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
