PFNF.012.2

Active

SCHURTER Inc.

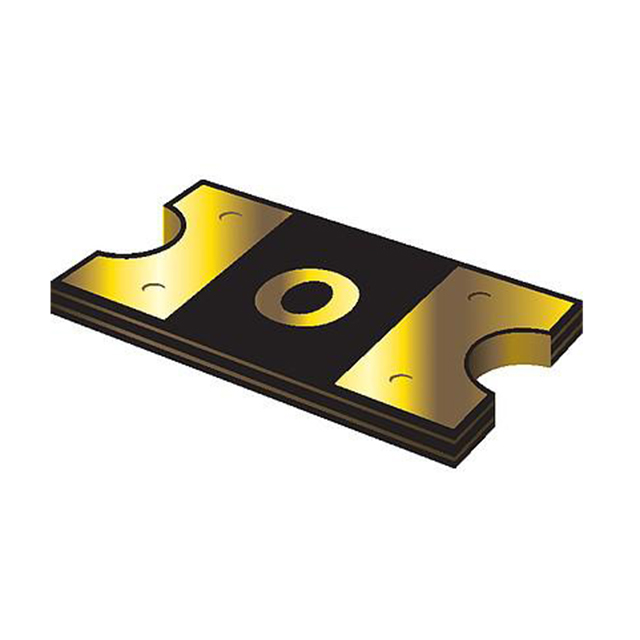

PTC RESET FUSE 30V 120MA 1206

Search across all available documentation for this part.

Active

SCHURTER Inc.

PTC RESET FUSE 30V 120MA 1206

Technical Specifications

Parameters and characteristics for this part

Specification	PFNF.012.2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	120 mA
Current - Trip (It)	290 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3216 Metric
Package / Case	1206
Package / Case	Concave
Resistance - Initial (Ri) (Min) [Min]	1.35 Ohms
Resistance - Post Trip (R1) (Max) [Max]	8.5 Ohms
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Thickness (Max) [Max] [custom]	0.043 "
Thickness (Max) [Max] [custom]	1.1 mm
Time to Trip	0.2 s
Type	Polymeric
Voltage - Max [Max]	30 V

PTC RESET FUSE 30V 120MA 1206

Part	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Type	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Trip (It)	Approval Agency	Time to Trip	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Voltage - Max [Max]	Mounting Type	Resistance - Initial (Ri) (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
SCHURTER Inc. PFNF.012.2	0.043 "	1.1 mm	Polymeric	8.5 Ohms	120 mA	290 mA	cURus, TUV	0.2 s	85 °C	-40 °C	3216 Metric	1206	Concave	30 V	Surface Mount	1.35 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 30V 120 mA Ih Surface Mount 1206 (3216 Metric), Concave
