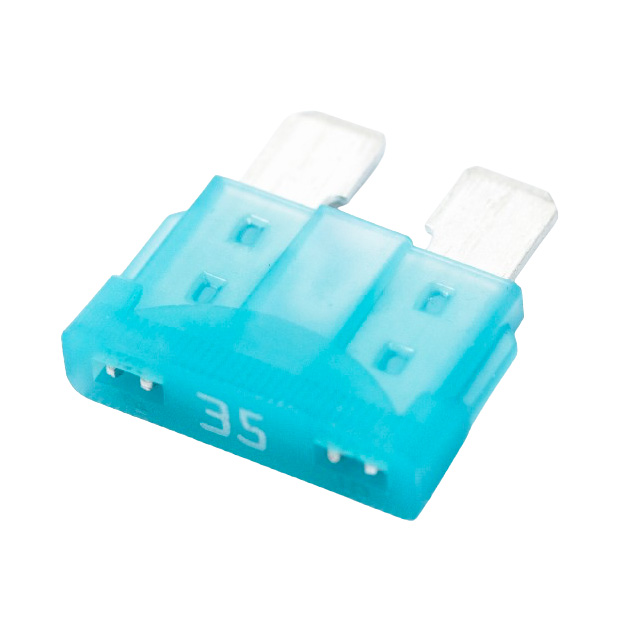

ANR-UL-35A
ActiveOptiFuse
FUSE AUTO 35A 32VDC BLADE ATO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANR-UL-35A
ActiveOptiFuse
FUSE AUTO 35A 32VDC BLADE ATO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANR-UL-35A | ANR-UL Series |
|---|---|---|
| Approval Agency | ISO, UL 248, SAE, cURus | ISO, UL 248, SAE, cURus |
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Dark Green | Yellow, Gray, Violet, Pink, Dark Green, Green, Tan, Brown, Red |
| Current Rating (Amps) | 35 A | 2 - 40 A |
| Fuse Type | Automotive | Automotive |
| Mounting Type | Requires Holder | Requires Holder |
| Package / Case | ATO, Blade, ATC | ATO, Blade, ATC |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 0.768 " | 0.768 " |
| Size / Dimension [x] | 19.5 mm | 19.5 mm |
| Size / Dimension [y] | 0.217 in | 0.217 in |
| Size / Dimension [y] | 5.5 mm | 5.5 mm |
| Size / Dimension [z] | 0.547 in | 0.547 in |
| Size / Dimension [z] | 13.9 mm | 13.9 mm |
| Voltage Rating - DC | 32 V | 32 V |
ANR-UL Series
FUSE AUTO 20A 32VDC BLADE ATO
| Part | Fuse Type | Breaking Capacity @ Rated Voltage | Package / Case | Mounting Type | Response Time | Current Rating (Amps) | Color | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage Rating - DC | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANR-UL-20A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 20 A | Yellow | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
OptiFuse ANR-UL-2A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 2 A | Gray | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
OptiFuse ANR-UL-3A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 3 A | Violet | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
OptiFuse ANR-UL-40A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 40 A | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 | |
OptiFuse ANR-UL-4A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 4 A | Pink | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
OptiFuse ANR-UL-35A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 35 A | Dark Green | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
OptiFuse ANR-UL-30A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 30 A | Green | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
OptiFuse ANR-UL-5A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 5 A | Tan | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
OptiFuse ANR-UL-7.5A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 7.5 A | Brown | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
OptiFuse ANR-UL-10A | Automotive | 1 kA | ATC, ATO, Blade | Requires Holder | Fast Blow | 10 A | Red | 0.547 in | 0.217 in | 0.768 " | 19.5 mm | 5.5 mm | 13.9 mm | 32 V | cURus, ISO, SAE, UL 248 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.43 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.25 | |||
Description
General part information
ANR-UL Series
35 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
