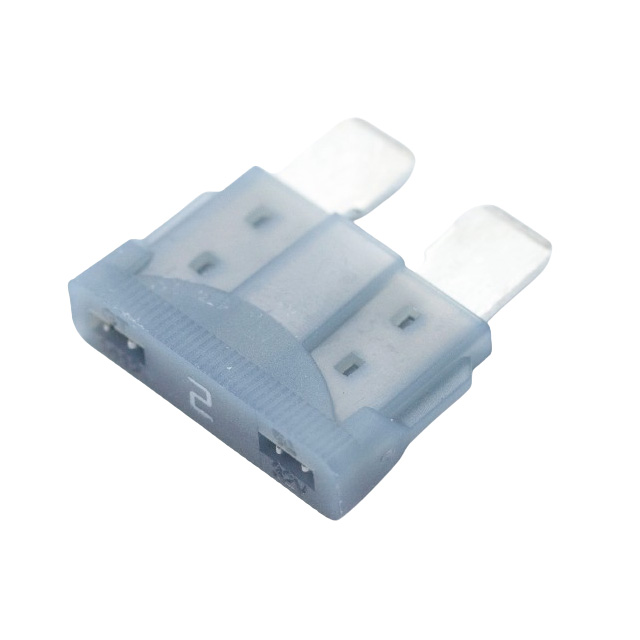

ANR-UL-2A

Active

OptiFuse

FUSE AUTO 2A 32VDC BLADE ATO/ATC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANR-UL-2A

Active

OptiFuse

FUSE AUTO 2A 32VDC BLADE ATO/ATC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.43
		10	$ 0.42
		25	$ 0.41
		50	$ 0.34
		100	$ 0.28
		250	$ 0.25
		500	$ 0.21
		1000	$ 0.19

Description

General part information

ANR-UL Series

2 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANR-UL-2A	ANR-UL Series

Approval Agency	ISO, UL 248, SAE, cURus	ISO, UL 248, SAE, cURus
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Gray	Yellow, Gray, Violet, Pink, Dark Green, Green, Tan, Brown, Red
Current Rating (Amps)	2 A	2 - 40 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	ATO, Blade, ATC	ATO, Blade, ATC
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.768 "	0.768 "
Size / Dimension [x]	19.5 mm	19.5 mm
Size / Dimension [y]	0.217 in	0.217 in
Size / Dimension [y]	5.5 mm	5.5 mm
Size / Dimension [z]	0.547 in	0.547 in
Size / Dimension [z]	13.9 mm	13.9 mm
Voltage Rating - DC	32 V	32 V

ANR-UL Series

FUSE AUTO 20A 32VDC BLADE ATO

Part	Fuse Type	Breaking Capacity @ Rated Voltage	Package / Case	Mounting Type	Response Time	Current Rating (Amps)	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage Rating - DC	Approval Agency
OptiFuse ANR-UL-20A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	20 A	Yellow	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-2A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	2 A	Gray	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-3A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	3 A	Violet	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-40A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	40 A		0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-4A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	4 A	Pink	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-35A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	35 A	Dark Green	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-30A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	30 A	Green	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-5A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	5 A	Tan	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-7.5A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	7.5 A	Brown	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
OptiFuse ANR-UL-10A	Automotive	1 kA	ATC, ATO, Blade	Requires Holder	Fast Blow	10 A	Red	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus, ISO, SAE, UL 248
