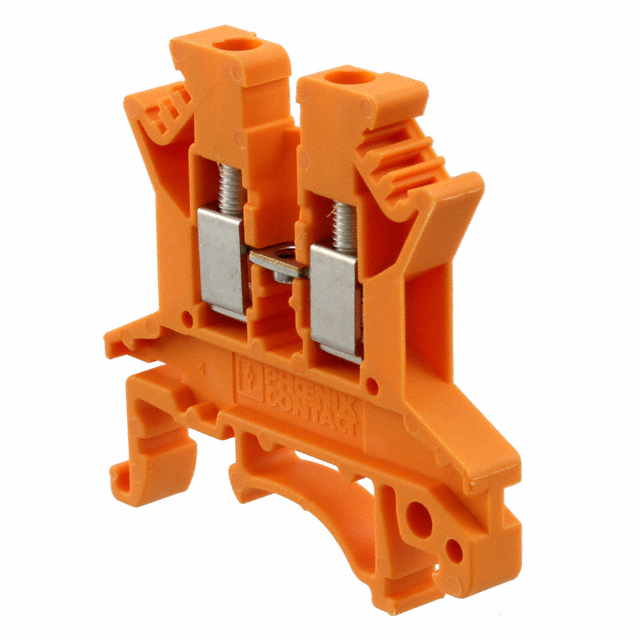

DIN Rail Terminal Blocks UK 2 5 N OG
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 3026780 | UK Series |
|---|---|---|
| Color | - | Blue, Gray |
| Current - IEC | 24 A | 16 - 57 A |
| Current - UL | 20 A | 20 - 65 A |
| Disconnect Type | - | Switch, Knife |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-2 | UL94 V-2, UL94 V-0 |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 |
| Stripping Length | 7 mm | 7 - 10 mm |
| Terminal - Width [y] | 5.2 mm | 5.2 - 10.2 mm |
| Termination Style | Screw | Screw |
| Type | Feed Through | Feed Through, Disconnect |
| Voltage - IEC | 800 V | 400 - 800 V |
| Voltage - UL | - | 600 V |
| Voltage - UL [custom] | 300 V | 150 - 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG | 20 - 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 6 - 12 AWG |
| Wire Gauge or Range - mm² [Max] | 4 mm² | 2.5 - 16 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² | 0.2 - 0.5 mm² |
DIN Rail Terminal Blocks UK 2 5 N OG
| Part | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Current - UL | Termination Style | Type | Terminal - Width [y] | Stripping Length | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Material Flammability Rating | Current - IEC | Number of Positions | Number of Levels | Voltage - IEC | Material - Insulation | Voltage - UL [custom] | Color | Voltage - UL | Disconnect Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3026780 | 30 AWG | 12 AWG | 20 A | Screw | Feed Through | 5.2 mm | 7 mm | 0.2 mm² | 4 mm² | UL94 V-2 | 24 A | 2 | 1 | 800 V | Nylon, Polyamide (PA) | 300 V | |||
Phoenix Contact 3002416 | 30 AWG | 12 AWG | 20 A | Screw | Feed Through | 5.2 mm | 8 mm | 0.2 mm² | 2.5 mm² | UL94 V-0 | 24 A | 1 | 400 V | Nylon, Polyamide (PA) | 150 V | Blue | |||
Phoenix Contact 3005073 | 24 AWG | 6 AWG | 65 A | Screw | Feed Through | 10.2 mm | 10 mm | 0.5 mm² | 16 mm² | UL94 V-0 | 57 A | 2 | 1 | 800 V | Nylon, Polyamide (PA) | Gray | 600 V | ||
Phoenix Contact 3003017 | 28 AWG | 12 AWG | 20 A | Screw | Feed Through | 6.2 mm | 8 mm | 0.2 mm² | 4 mm² | UL94 V-2 | 32 A | 2 | 1 | 800 V | Nylon, Polyamide (PA) | Gray | 600 V | ||
Phoenix Contact 3000563 | 20 AWG | 10 AWG | Screw | Disconnect | 6.2 mm | 8 mm | 0.2 mm² | 6 mm² | UL94 V-0 | 16 A | 2 | 1 | 500 V | Nylon, Polyamide (PA) | Gray | 600 V | Knife, Switch |
