M80-5610605

Active

Harwin Inc.

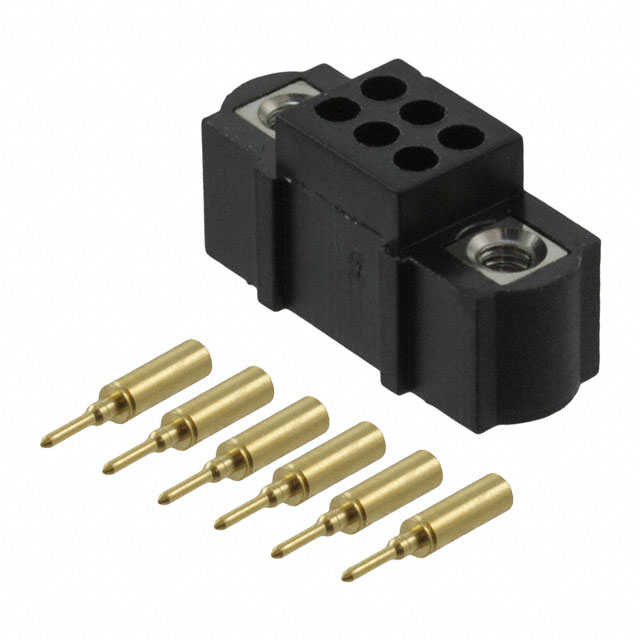

3+3 POS. MALE DIL 24-28AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

3+3 POS. MALE DIL 24-28AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Connector Type	Row Spacing	Row Spacing	Color	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Features	Wire Type
Harwin Inc. M80-5612605	Crimp	Header	2 mm	0.079 in	Black	2	10 Áin	0.25 Ám	Free Hanging (In-Line)	Male Pin	0.079 in	2 mm	Gold	24 AWG	28 AWG	26	Jackscrews	Discrete
Harwin Inc. M80-5610605	Crimp	Header	2 mm	0.079 in	Black	2	10 Áin	0.25 Ám	Free Hanging (In-Line)	Male Pin	0.079 in	2 mm	Gold	24 AWG	28 AWG	6	Jackscrews	Discrete
Harwin Inc. M80-5611205	Crimp	Header	2 mm	0.079 in	Black	2	10 Áin	0.25 Ám	Free Hanging (In-Line)	Male Pin	0.079 in	2 mm	Gold	24 AWG	28 AWG	12	Jackscrews	Discrete
Harwin Inc. M80-5614205	Crimp	Header	2 mm	0.079 in	Black	2	10 Áin	0.25 Ám	Free Hanging (In-Line)	Male Pin	0.079 in	2 mm	Gold	24 AWG	28 AWG	42	Jackscrews	Discrete

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Rectangular Header Connector Crimp Gold 24-28 AWG
