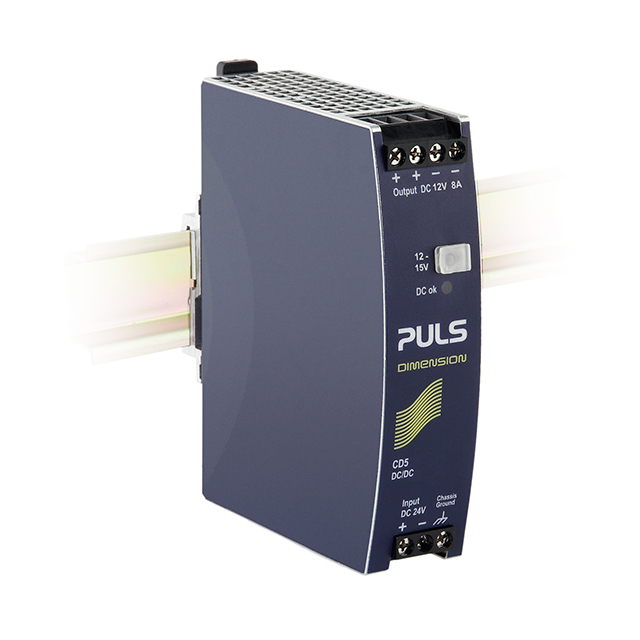

CD5.121

Active

PULS, LP

DC/DC DIN RAIL SUPPLY 12V 96W

Search across all available documentation for this part.

Active

PULS, LP

DC/DC DIN RAIL SUPPLY 12V 96W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 400.50

General part information

DC/DC DIN RAIL SUPPLY 12V 96W

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CD5.121	CD5 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, CSA, EAC, ATEX, ABS, DNV GL, IECEx, IEC	UL, CSA, EAC, ATEX, ABS, DNV GL, IECEx, IEC, NEC
Current - Output (Max) [Max]	8 A	3.8 - 8 A
DC Voltage - Input (Max) [Max]	32.4 V	16.2 - 60 V
DC Voltage - Input (Min) [Min]	18 V	10.8 - 36 V
Efficiency	88.2 %	87.7 - 90.5 %
Input Type	DC	DC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	96 W	84 - 96 W
Size / Dimension [x]	102 mm	102 mm
Size / Dimension [x]	4.02 in	4.02 in
Size / Dimension [y]	32 mm	32 mm
Size / Dimension [y]	1.26 in	1.26 in
Size / Dimension [z]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Standard Number	508, Class I Div 2, 60950-1	508, Class I Div 2, 60950-1, Class 2
Voltage - Output 1	12 V	12 - 24 V

DC/DC DIN RAIL SUPPLY 24V 120W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Number of Outputs	Efficiency	DC Voltage - Input (Min) [Min]	Applications	Standard Number	DC Voltage - Input (Max) [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)
PULS, LP CD5.241-S1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	90.2 %	18 V	ITE (Commercial)	508, 60950-1, Class I Div 2	32.4 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	5 A	24 V
PULS, LP CD5.242	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	90.3 %	36 V	ITE (Commercial)	508, 60950-1, Class I Div 2	60 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	5 A	24 V
PULS, LP CD5.121	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	88.2 %	18 V	ITE (Commercial)	508, 60950-1, Class I Div 2	32.4 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	8 A	12 V	96 W
PULS, LP CD5.241-L1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	90.5 %	14.4 V	ITE (Commercial)	508, 60950-1, Class 2, Class I Div 2	32.4 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, NEC, UL	-25 °C	70 °C	3.8 A	24 V	92 W
PULS, LP CD5.241	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	90.3 %	18 V	ITE (Commercial)	508, 60950-1, Class I Div 2	32.4 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	5 A	24 V
PULS, LP CD5.243	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	87.7 %	10.8 V	ITE (Commercial)	508, 60950-1, Class I Div 2	16.2 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	4 A	24 V	84 W
