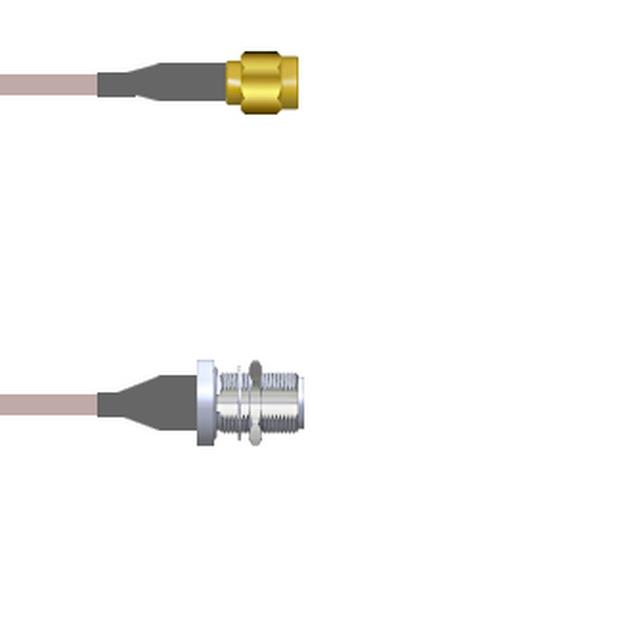

Q-3C022000R003M

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 9.8'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3C022000R003M

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	Overall Impedance	2nd Connector Mounting Feature	Cable Type	Color	2nd Connector Mounting Type	1st Contact Gender	2nd Contact Gender	Cable Impedance	Length	Length	Length	Features	Style	1st Connector Mounting Type	1st Connector	Frequency - Max [Max]	Connector Impedance	2nd Connector
Amphenol Custom Cable Q-3C022000R003M	50 Ohms	Bulkhead - Front Side Nut	RG-316 DS	Copper	Panel Mount	Male	Female	50 Ohms	3 m	118.1 in	9.8 '	Shielded	SMA to N-Type	Free Hanging (In-Line)	SMA Plug	3 GHz	50 Ohms	N-Type Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-316 DS 118.1" (3.0m) 9.8'
