C3122.41.86
ActivePrysmian Group

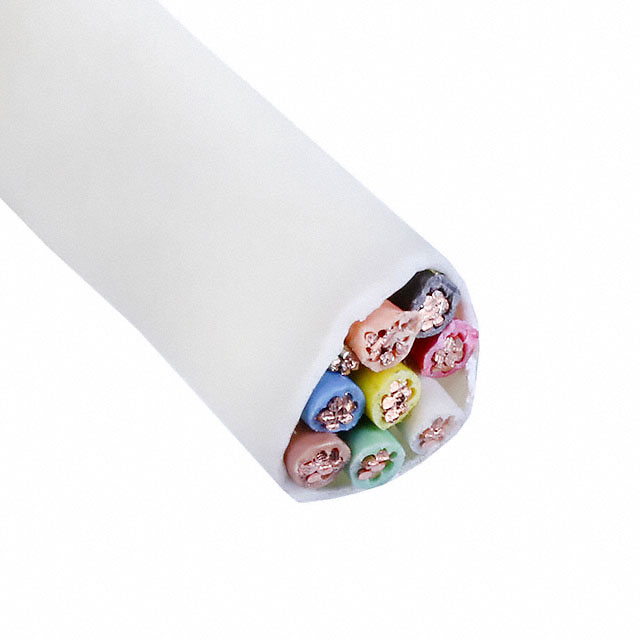

CABLE 8COND 18AWG NATURAL 50'
Deep-Dive with AI
Search across all available documentation for this part.
C3122.41.86
ActivePrysmian Group
CABLE 8COND 18AWG NATURAL 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C3122.41.86 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 0.239 in |
| Jacket (Insulation) Diameter [diameter] | 6.07 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 50 ft |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | ASTM B-3 |
| Usage | Control, Communication |
| Voltage | 150 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 146.21 | |
| 5 | $ 119.62 | |||
| 10 | $ 93.04 | |||
| 1000 | $ 1.71 | |||
| 2000 | $ 1.63 | |||
| 3000 | $ 1.58 | |||
| 5000 | $ 1.52 | |||
Description
General part information
C3122 Series
8 Conductor Multi-Conductor Cable Natural 18 AWG 50.00' (15.24m)
