N2530-6002-UB
Active3M

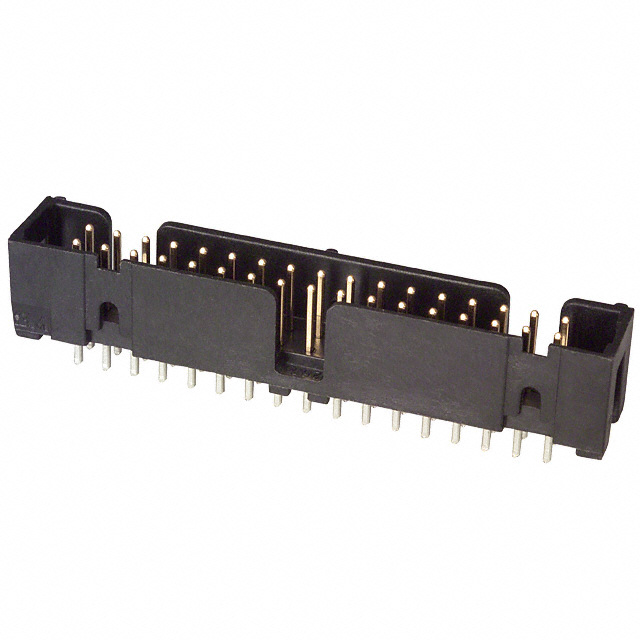

CONN HEADER VERT 30POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N2530-6002-UB
Active3M
CONN HEADER VERT 30POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | N2530-6002-UB | N2530 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Post | 2.84 mm | 2.84 - 3.94 mm |
| Contact Length - Post | 0.112 in | 0.112 - 0.155 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.75 A | 1.75 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Keying Slot | Keying Slot, Pick and Place |
| Insulation Color | Black | Black |
| Insulation Height [z] | 9.91 mm | 9.91 mm |
| Insulation Height [z] | 0.39 in | 0.39 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Positions | 30 | 30 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
N2530 Series
CONN HEADER VERT 30POS 2.54MM
| Part | Termination | Contact Shape | Number of Positions | Contact Finish - Post | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Insulation Color | Pitch - Mating | Pitch - Mating | Insulation Material | Material Flammability Rating | Fastening Type | Number of Positions Loaded | Contact Type | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Style | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mounting Type | Number of Rows | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post | Contact Length - Post | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Solder | Square | 30 | Tin-Lead | Keying Slot | 200 µin | 5.08 µm | 1.75 A | Black | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | UL94 V-0 | Push-Pull | All | Male Pin | Shrouded - 4 Wall | 30 Áin | 0.76 Ám | 9.91 mm | 0.39 in | Board to Board, Cable | 105 ░C | -55 °C | Header | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | 2.84 mm | 0.112 in | Gold | |
Solder | Square | 30 | Tin | Keying Slot, Pick and Place | 200 µin | 5.08 µm | 1.75 A | Black | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | UL94 V-0 | Push-Pull | All | Male Pin | Shrouded - 4 Wall | 30 Áin | 0.76 Ám | 9.91 mm | 0.39 in | Board to Board, Cable | 105 ░C | -55 °C | Header | Surface Mount | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | |||
Solder | Square | 30 | Tin | Keying Slot | 200 µin | 5.08 µm | 1.75 A | Black | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | UL94 V-0 | Push-Pull | All | Male Pin | Shrouded - 4 Wall | 30 Áin | 0.76 Ám | 9.91 mm | 0.39 in | Board to Board, Cable | 105 ░C | -55 °C | Header | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | 3.94 mm | 0.155 " | Gold | |
Solder | Square | 30 | Tin-Lead | Keying Slot | 200 µin | 5.08 µm | 1.75 A | Black | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | UL94 V-0 | Push-Pull | All | Male Pin | Shrouded - 4 Wall | 30 Áin | 0.76 Ám | 9.91 mm | 0.39 in | Board to Board, Cable | 105 ░C | -55 °C | Header | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | 3.94 mm | 0.155 " | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N2530 Series
Connector Header Through Hole 30 position 0.100" (2.54mm)
