N2530-6V0C-RB-WF

Active

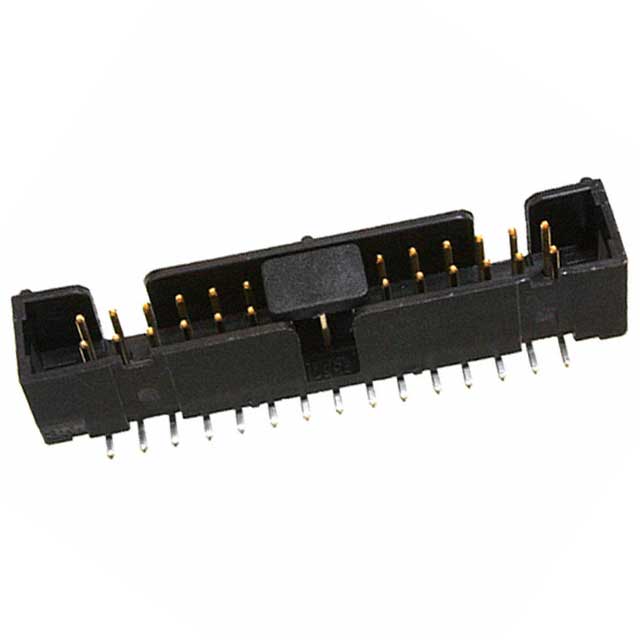

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 30 CONTACTS, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +2

N2530-6V0C-RB-WF

Active

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 30 CONTACTS, SOLDER

Deep-Dive with AI

DocumentsDatasheet Drawing EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2530-6V0C-RB-WF	N2530 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.84 - 3.94 mm
Contact Length - Post	-	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Positions	30	30
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2530 Series

CONN HEADER VERT 30POS 2.54MM

Part	Termination	Contact Shape	Number of Positions	Contact Finish - Post	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Material	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Number of Rows	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating
3M N2530-6002-UB	Solder	Square	30	Tin-Lead	Keying Slot	200 µin	5.08 µm	1.75 A	Black	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	UL94 V-0	Push-Pull	All	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	9.91 mm	0.39 in	Board to Board, Cable	105 ░C	-55 °C	Header	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	2.84 mm	0.112 in	Gold
3M N2530-6V0C-RB-WF	Solder	Square	30	Tin	Keying Slot, Pick and Place	200 µin	5.08 µm	1.75 A	Black	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	UL94 V-0	Push-Pull	All	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	9.91 mm	0.39 in	Board to Board, Cable	105 ░C	-55 °C	Header	Surface Mount	2	Copper Alloy	2.54 mm	0.1 in			Gold
3M N2530-6003-RB	Solder	Square	30	Tin	Keying Slot	200 µin	5.08 µm	1.75 A	Black	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	UL94 V-0	Push-Pull	All	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	9.91 mm	0.39 in	Board to Board, Cable	105 ░C	-55 °C	Header	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	3.94 mm	0.155 "	Gold
3M N2530-6003-UB	Solder	Square	30	Tin-Lead	Keying Slot	200 µin	5.08 µm	1.75 A	Black	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	UL94 V-0	Push-Pull	All	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	9.91 mm	0.39 in	Board to Board, Cable	105 ░C	-55 °C	Header	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	3.94 mm	0.155 "	Gold
