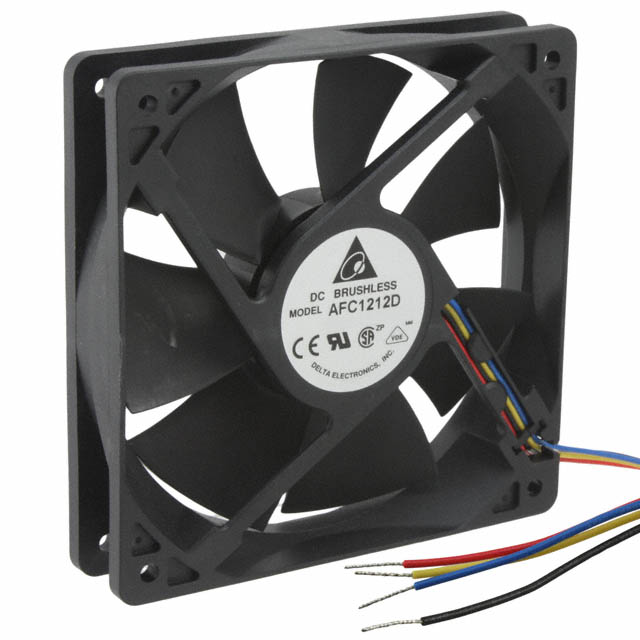

AFC1212D-F00

Obsolete

Delta Electronics

FAN AXIAL 120X25.4MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 120X25.4MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	AFC1212D-F00

Air Flow	3.17 m³/min
Air Flow	113.1 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.53 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	46.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6.36 W
RPM	3400 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	107.1 Pa
Static Pressure	0.43 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	198 g
Weight	0.437 lb
Width [y]	25.4 mm

Part	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Power (Watts)	Bearing Type	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Width [y]	Features	Material - Frame	Material - Blade	Lifetime @ Temp.	Termination	Current Rating (Amps)	Noise	RPM	Weight	Weight
Delta Electronics AFC1212D-SP19	84.2 Pa	0.338 in H2O	120 mm	120 mm	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	CE CSA UL VDE	3.84 W	Ball	2.51 m³/min	89.7 CFM	10.8 VDC	12.6 VDC	12 VDC	25.4 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Plastic	70000 Hrs	4 Wire Leads	320 mA	46 dB(A)	3000 RPM	0.503 lb	228.16 g
Delta Electronics AFC1212D-F00	107.1 Pa	0.43 in H2O	120 mm	120 mm	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	CE CSA UL VDE	6.36 W	Ball	3.17 m³/min	113.1 CFM	10.2 VDC	13.8 VDC	12 VDC	25.4 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Plastic	70000 Hrs	4 Wire Leads	0.53 A	46.5 dB	3400 RPM	0.437 lb	198 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 113.1 CFM (3.17m³/min) 4 Wire Leads
