Description
General part information

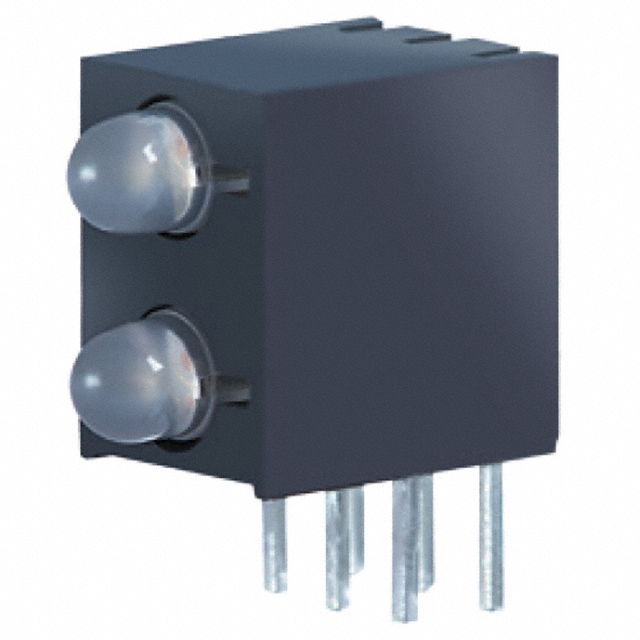

XVO2LUGR86 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, White 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top 2.90mm Dia Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | XVO2LUGR86M8 |
|---|---|
| Color | Red, Green |
| Color Count | 1 count, 1 count |
| Configuration | High |
| Configuration Count | 2 |
| Current (Green) | 25 mA |
| Current (Red) | 30 mA |
| Current Colors | Green, Red |
| Lens Diameter | 2.9 mm |
| Lens Style | Round, Domed Top |
| Lens Type | White, Diffused |
| Millicandela Rating (Green) | 29 mcd |
| Millicandela Rating (Red) | 23 mcd |
| Millicandela Rating Colors | Green, Red |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating - Color | Red, Green |
| Voltage Rating (Green) | 2.2 V |
| Voltage Rating (Red) | 2 V |
| Wavelength - Peak (1) | 565 nm |
| Wavelength - Peak (2) | 627 nm |
