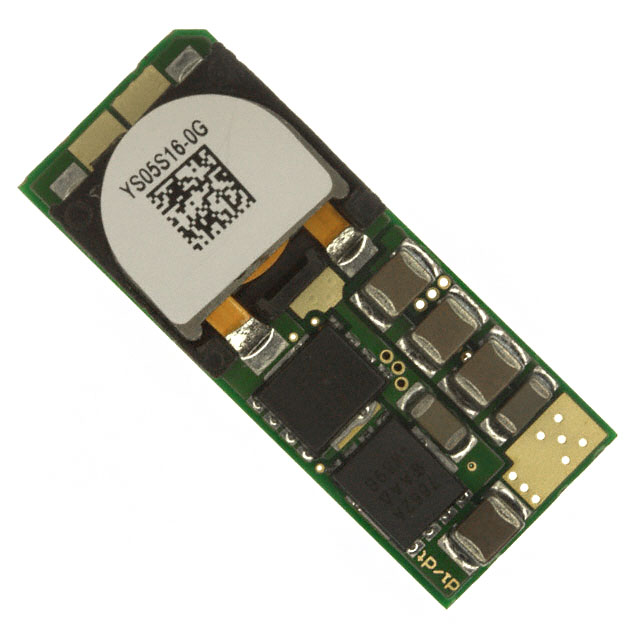

YS05S16-0G

Active

Bel Power Solutions

MODULE DC-DC 5VIN 1-OUT 0.7525V TO 3.63V 16A 58W 6-PIN SMD

Search across all available documentation for this part.

Active

Bel Power Solutions

MODULE DC-DC 5VIN 1-OUT 0.7525V TO 3.63V 16A 58W 6-PIN SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YS05S16-0G	YS05S16 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	16 A	16 A
Efficiency	93 %	93 %
Features	Remote On/Off, UVLO, OCP, OTP	Remote On/Off, UVLO, OCP, OTP
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-SMD Module	6-SMD Module
Size / Dimension [x]	1.3 "	1.3 "
Size / Dimension [x]	33 mm	33 mm
Size / Dimension [y]	0.53 in	0.53 in
Size / Dimension [y]	13.5 mm	13.5 mm
Size / Dimension [z]	0.31 in	0.31 - 0.32 in
Size / Dimension [z]	7.9 mm	7.9 - 8 mm
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	3 V	3 V
Voltage - Output 1 [Max]	3.63 V	3.63 V
Voltage - Output 1 [Min]	0.75 V	0.75 - 0.7525 V

MODULE DC-DC 5VIN 1-OUT 0.7525V TO 3.63V 16A 58W 6-PIN SMD

Part	Voltage - Input (Max) [Max]	Number of Outputs	Control Features	Mounting Type	Voltage - Input (Min) [Min]	Applications	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Current - Output (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features
Bel Power Solutions YS05S16-0G	5.5 V	1	Active High, Enable	Surface Mount	3 V	ITE (Commercial)	6-SMD Module	1.3 "	0.31 in	0.53 in	33 mm	7.9 mm	13.5 mm	Non-Isolated PoL Module	16 A	93 %	85 °C	-40 °C	3.63 V	0.75 V	OCP, OTP, Remote On/Off, UVLO
Bel Power Solutions YS05S16-DG	5.5 V	1	Active Low, Enable	Surface Mount	3 V	ITE (Commercial)	6-SMD Module	1.3 "	0.32 "	0.53 in	33 mm	8 mm	13.5 mm	Non-Isolated PoL Module	16 A	93 %	85 °C	-40 °C	3.63 V	0.7525 V	OCP, OTP, Remote On/Off, UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.63V 16A 3V - 5.5V Input
