ABC225-1T15L

Active

Bel Power Solutions

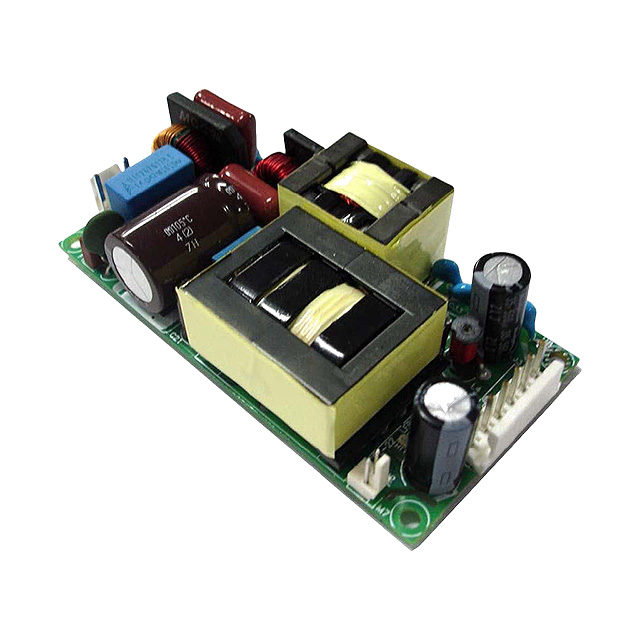

AC/DC CONVERTER 15V 113/125W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 15V 113/125W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC225-1T15L	ABC225 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	-	2.07 - 4.68 A
Efficiency	92 %	92 - 94 %
Features	Standby Output, Universal Input, PFC, DC Input Capable	Standby Output, Universal Input, PFC, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	113 W	113 W
Power (Watts) [Max]	225 W	225 W
Type	Open Frame	Open Frame
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	15 V	12 - 48 V

AC/DC POWER SUPPLY SINGLE-OUT 24V 5A

Part	Approval Agency	Voltage - Output 1	Number of Outputs	Current - Output 1	Power (Watts) [Max]	Power (Watts)	Type	Applications	Efficiency	Features	Voltage - Isolation	Mounting Type
Bel Power Solutions ABC225-1T24L	CE	24 V	1	4.68 A	225 W	113 W	Open Frame	ITE (Commercial)	93 %	DC Input Capable, PFC, Standby Output, Universal Input	3000 V	Chassis Mount
Bel Power Solutions ABC225-1T48L	CE	48 V	1	2.34 A	225 W	113 W	Open Frame	ITE (Commercial)	94 %	DC Input Capable, PFC, Standby Output, Universal Input	3000 V	Chassis Mount
Bel Power Solutions ABC225-1015L	CE	15 V	1		225 W	113 W	Open Frame	ITE (Commercial)	92 %	DC Input Capable, PFC, Standby Output, Universal Input	3000 V	Chassis Mount
Bel Power Solutions ABC225-1048L	CE	48 V	1	2.34 A	225 W	113 W	Open Frame	ITE (Commercial)	94 %	DC Input Capable, PFC, Standby Output, Universal Input	3000 V	Chassis Mount
Bel Power Solutions ABC225-1058L	CE		1	2.07 A	225 W	113 W	Open Frame	ITE (Commercial)	94 %	DC Input Capable, PFC, Standby Output, Universal Input	3000 V	Chassis Mount
Bel Power Solutions ABC225-1012L	CE	12 V	1		225 W	113 W	Open Frame	ITE (Commercial)	92 %	DC Input Capable, PFC, Standby Output, Universal Input	3000 V	Chassis Mount
Bel Power Solutions ABC225-1T15L	CE	15 V	1		225 W	113 W	Open Frame	ITE (Commercial)	92 %	DC Input Capable, PFC, Standby Output, Universal Input	3000 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
