T37001-10-0

Active

Curtis Industries

CONN BARRIER STRP 10CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37001-10-0

Active

Curtis Industries

CONN BARRIER STRP 10CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.72
		10	$ 6.09

Description

General part information

T37001 Series

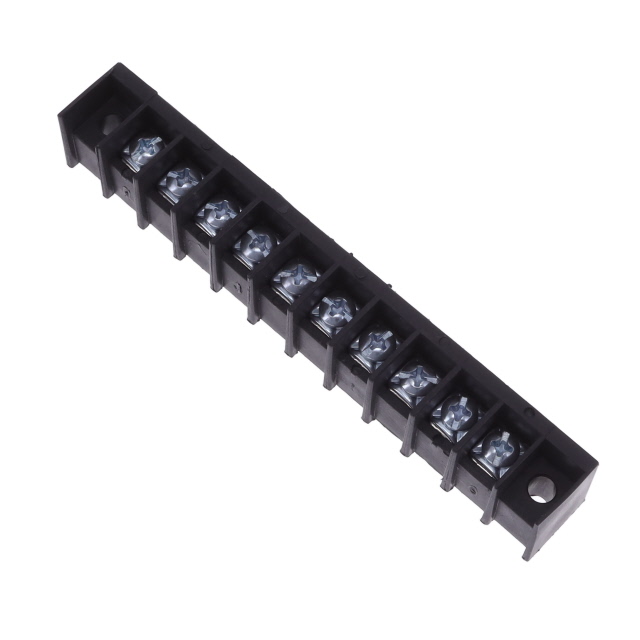

10 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T37001-10-0	T37001 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	Closed	Closed
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	10	6 - 23
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	10	6 - 21
Number of Wire Entries	-	23
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

T37001 Series

CONN BARRIER STRP 21CIRC 0.375"

Part	Operating Temperature	Current Rating (Amps)	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Number of Circuits	Number of Wire Entries	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Block Type	Material Flammability Rating	Top Termination	Bottom Termination	Features	Voltage Rating	Barrier Type	Number of Circuits [custom]	Number of Wire Entries [custom]
Curtis Industries T37001-21-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	21	21	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-09-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1		9	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-18-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	18	18	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-08-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1		8	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)	8
Curtis Industries T37001-17-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	17	17	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-10-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	10	10	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-19-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	19	19	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-06-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	6	6	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-15-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	15	15	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-23-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	23		Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)		23
