T37001-06-0

Active

Curtis Industries

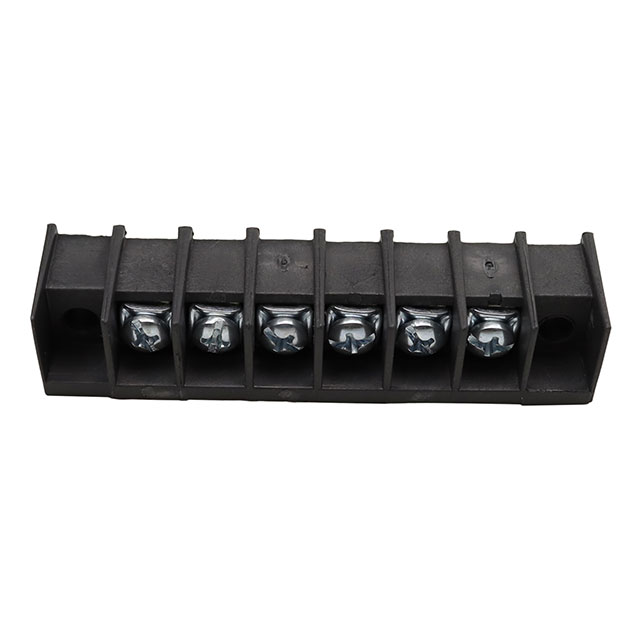

CONN BARRIER STRIP 6CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37001-06-0

Active

Curtis Industries

CONN BARRIER STRIP 6CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.62
		10	$ 2.76
		25	$ 2.59
		50	$ 2.30
		100	$ 2.25
		250	$ 2.20

Description

General part information

T37001 Series

6 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available

Specification	T37001-06-0	T37001 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	Closed	Closed
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	6	6 - 23
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	6	6 - 21
Number of Wire Entries	-	23
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part

Operating Temperature

Current Rating (Amps)

Mounting Type

Pitch [x]

Number of Rows

Number of Circuits

Number of Wire Entries

Material - Insulation

Wire Gauge [Min]

Wire Gauge [Max]

Terminal Block Type

Material Flammability Rating

Top Termination

Bottom Termination

Features

Voltage Rating

Barrier Type

Number of Circuits [custom]

Number of Wire Entries [custom]

Curtis Industries

T37001-21-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-09-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-18-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-08-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-17-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-10-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-19-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-06-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-15-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Curtis Industries

T37001-23-0

105 C

20 A

Chassis, Panel

9.53 mm

0.375 in

Polypropylene (PP)

12 AWG

22 AWG

Barrier Block

UL94 V-0

Screws with Captive Plate

Closed

Flange

300 VDC

3 Wall (Tri)

Part	Operating Temperature	Current Rating (Amps)	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Number of Circuits	Number of Wire Entries	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Block Type	Material Flammability Rating	Top Termination	Bottom Termination	Features	Voltage Rating	Barrier Type	Number of Circuits [custom]	Number of Wire Entries [custom]
Curtis Industries T37001-21-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	21	21	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-09-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1		9	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-18-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	18	18	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-08-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1		8	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)	8
Curtis Industries T37001-17-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	17	17	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-10-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	10	10	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-19-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	19	19	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-06-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	6	6	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-15-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	15	15	Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)
Curtis Industries T37001-23-0	105 C	20 A	Chassis, Panel	9.53 mm	0.375 in	1	23		Polypropylene (PP)	12 AWG	22 AWG	Barrier Block	UL94 V-0	Screws with Captive Plate	Closed	Flange	300 VDC	3 Wall (Tri)		23
