WLS15XDW0220DSQS

Active

BANNER ENGINEERING

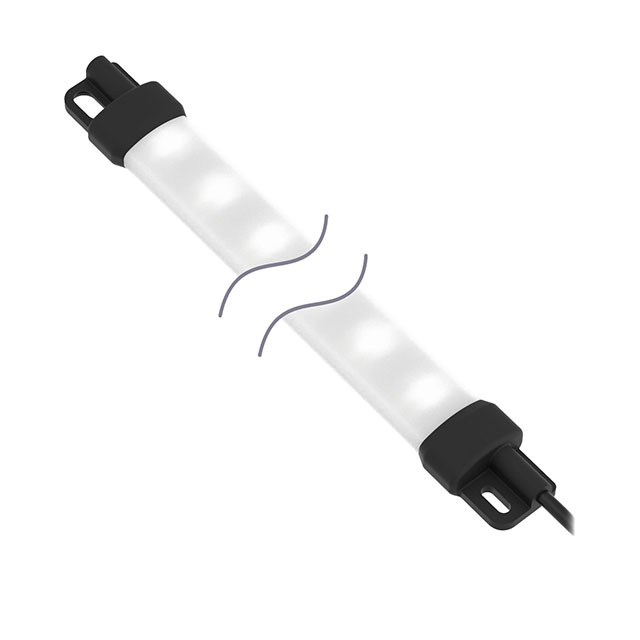

WLS15 WORK LIGHT STRIP; DIFFUSED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WLS15XDW0220DSQS

Active

BANNER ENGINEERING

WLS15 WORK LIGHT STRIP; DIFFUSED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 85.00
Newark	Each	1	$ 87.00

Description

General part information

WLS15XDW Series

WLS15 WORK LIGHT STRIP; DIFFUSED

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WLS15XDW0220DSQS	WLS15XDW Series

Approval Agency	cULus, CE	cULus, CE
Features	Dimmable	Dimmable
Housing Material	Aluminum (Al)	Aluminum (Al)
Illumination Color	White, Cool	White, Cool
Ingress Protection	IP66/IP67	IP66/IP67
Length	8.66 in	8.66 - 19.69 in
Length	220 mm	50 - 1200 mm
Length	-	360 - 920 mm
Length	-	14.17 - 47.24 in
Lens Type	Flat, Diffused	Flat, Diffused
Luminous Flux	175 lm	175 - 1400 lm
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Profile (W x H) [x]	1.2 "	1.2 "
Profile (W x H) [x]	30.6 mm	30.6 mm
Profile (W x H) [y]	0.61 "	0.61 "
Profile (W x H) [y]	15.5 mm	15.5 mm
Termination Style	Cable with Connector (Deutsch DTM)	Cable Leads, Cable with Connector (M12), Cable with Connector (Deutsch DTM)
Voltage - Supply [Max]	24 V	24 V
Voltage - Supply [Min]	12 V	12 V

WLS15XDW Series

LED STRIP LIGHT, NON-CASCADABLE, DAYLIGHT WHITE, 360MM LENGTH, 24VDC SUPPLY, WLS15 SERIES

Part	Housing Material	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Illumination Color	Luminous Flux	Profile (W x H) [x]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [y]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Lens Type	Features	Approval Agency	Length	Length
BANNER ENGINEERING WLS15XDW0360DSC2	Aluminum (Al)	24 V	12 V	Cable Leads	Cool, White	350 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C	360 mm	14.17 in	Diffused, Flat	Dimmable	CE, cULus
BANNER ENGINEERING WLS15XDW0220DSQP	Aluminum (Al)	24 V	12 V	Cable with Connector (M12)	Cool, White	175 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C			Diffused, Flat	Dimmable	CE, cULus	8.66 in	220 mm
BANNER ENGINEERING WLS15XDW0220DSQS	Aluminum (Al)	24 V	12 V	Cable with Connector (Deutsch DTM)	Cool, White	175 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C			Diffused, Flat	Dimmable	CE, cULus	8.66 in	220 mm
BANNER ENGINEERING WLS15XDW1200DSQP	Aluminum (Al)	24 V	12 V	Cable with Connector (M12)	Cool, White	1400 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C		47.24 in	Diffused, Flat	Dimmable	CE, cULus		1200 mm
BANNER ENGINEERING WLS15XDW0500DSQP	Aluminum (Al)	24 V	12 V	Cable with Connector (M12)	Cool, White	525 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C			Diffused, Flat	Dimmable	CE, cULus	19.69 "	50 cm
BANNER ENGINEERING WLS15XDW0500DSC2	Aluminum (Al)	24 V	12 V	Cable Leads	Cool, White	525 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C			Diffused, Flat	Dimmable	CE, cULus	19.69 "	50 cm
BANNER ENGINEERING WLS15XDW0920DSQP	Aluminum (Al)	24 V	12 V	Cable with Connector (M12)	Cool, White	1050 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C	920 mm	36.22 "	Diffused, Flat	Dimmable	CE, cULus
BANNER ENGINEERING WLS15XDW0640DSC2	Aluminum (Al)	24 V	12 V	Cable Leads	Cool, White	700 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C	640 mm	25.2 "	Diffused, Flat	Dimmable	CE, cULus
BANNER ENGINEERING WLS15XDW0360DSQP	Aluminum (Al)	24 V	12 V	Cable with Connector (M12)	Cool, White	350 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C	360 mm	14.17 in	Diffused, Flat	Dimmable	CE, cULus
BANNER ENGINEERING WLS15XDW0640DSQP	Aluminum (Al)	24 V	12 V	Cable with Connector (M12)	Cool, White	700 lm	1.2 "	30.6 mm	0.61 "	15.5 mm	IP66/IP67	-40 °C	60 °C	640 mm	25.2 "	Diffused, Flat	Dimmable	CE, cULus
