Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M20047-EVB-1 | M20047 Series |
|---|---|---|
| Antenna Type | - | Integrated, Trace |
| Applications | - | General Purpose |
| For Use With/Related Products | M20047-1 | M20047-1 |
| Frequency (Center/Band) | - | 1.584 GHz |
| Frequency [Max] | 1.609 GHz | 1.609 GHz |
| Frequency [Min] | 1.559 GHz | 1.559 GHz |
| Frequency Group | - | 2 GHz |
| Frequency Group | - | 1 GHz |
| Frequency Group | - | UHF |
| Frequency Range | - | 1.609 GHz |
| Frequency Range | - | 1.559 GHz |
| Gain | - | 3 dBi |
| Height (Max) | - | 0.043 in |
| Height (Max) | - | 1.1 mm |
| Mounting Type | - | Surface Mount |
| Number of Bands | - | 1 |
| Return Loss | - | -12 dB |
| RF Family/Standard | - | Navigation |
| Supplied Contents | Board(s) | Board(s) |
| Termination | - | Solder |
| Type | Antenna | Antenna |
| VSWR | - | 1.4 |
M20047 Series
M20047-1 EVALUATION BOARD
| Part | For Use With/Related Products | Supplied Contents | Frequency [Max] | Frequency [Min] | Type | Frequency (Center/Band) | Antenna Type | VSWR | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Return Loss | Frequency Range [Max] | Frequency Range [Min] | Termination | Height (Max) [Max] | Height (Max) [Max] | Mounting Type | Applications | RF Family/Standard | Gain | Number of Bands |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Antenova M20047-EVB-1 | M20047-1 | Board(s) | 1.609 GHz | 1.559 GHz | Antenna | |||||||||||||||||
Antenova M20047-1 | 1.584 GHz | Integrated, Trace | 1.4 | 2 GHz | 1 GHz | UHF | -12 dB | 1.609 GHz | 1.559 GHz | Solder | 0.043 in | 1.1 mm | Surface Mount | General Purpose | Navigation | 3 dBi | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 140.38 | |
| 10 | $ 135.76 | |||
Description
General part information
M20047 Series

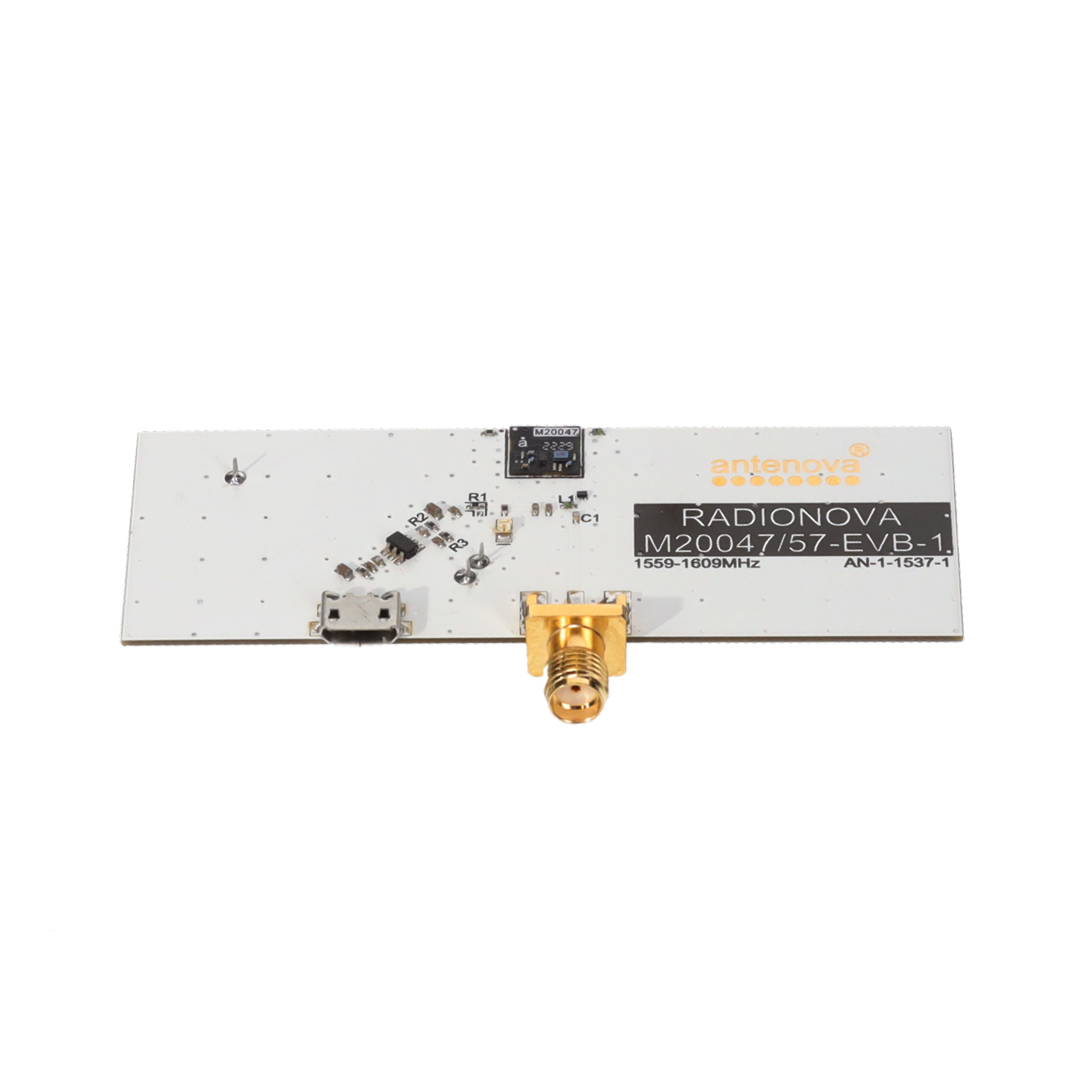

- M20047-1 Antenna 1.559GHz ~ 1.609GHz Evaluation Board
