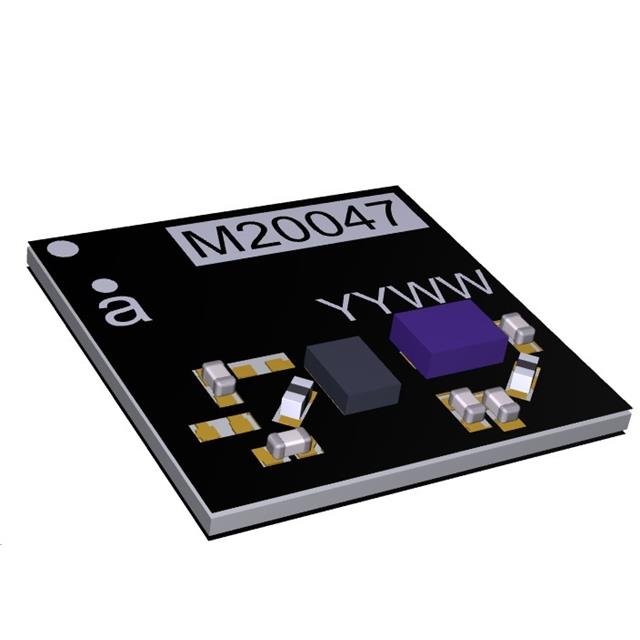

ANTENNA GNSS -0.5DBI GAIN 1609MHZ 7-PIN SMD T/R

Search across all available documentation for this part.

Active

Antenova

ANTENNA GNSS -0.5DBI GAIN 1609MHZ 7-PIN SMD T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M20047-1	M20047 Series

Antenna Type	Integrated, Trace	Integrated, Trace
Applications	General Purpose	General Purpose
For Use With/Related Products	-	M20047-1
Frequency	-	1.609 GHz
Frequency	-	1.559 GHz
Frequency (Center/Band)	1.584 GHz	1.584 GHz
Frequency Group	UHF	UHF
Frequency Group [Max]	2 GHz	2 GHz
Frequency Group [Min]	1 GHz	1 GHz
Frequency Range [Max]	1.609 GHz	1.609 GHz
Frequency Range [Min]	1.559 GHz	1.559 GHz
Gain	3 dBi	3 dBi
Height (Max) [Max]	0.043 in	0.043 in
Height (Max) [Max]	1.1 mm	1.1 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	1	1
Return Loss	-12 dB	-12 dB
RF Family/Standard	Navigation	Navigation
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	1.4	1.4

M20047-1 EVALUATION BOARD

Part	For Use With/Related Products	Supplied Contents	Frequency [Max]	Frequency [Min]	Type	Frequency (Center/Band)	Antenna Type	VSWR	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Return Loss	Frequency Range [Max]	Frequency Range [Min]	Termination	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Applications	RF Family/Standard	Gain	Number of Bands
Antenova M20047-EVB-1	M20047-1	Board(s)	1.609 GHz	1.559 GHz	Antenna
Antenova M20047-1						1.584 GHz	Integrated, Trace	1.4	2 GHz	1 GHz	UHF	-12 dB	1.609 GHz	1.559 GHz	Solder	0.043 in	1.1 mm	Surface Mount	General Purpose	Navigation	3 dBi	1
