MX34R24HF4T

Active

JAE Electronics

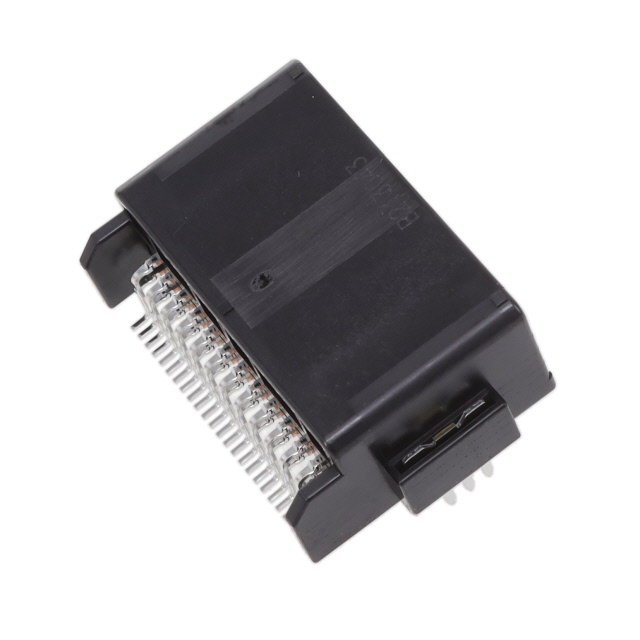

CONN HEADER SMD R/A 24POS 2.2MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER SMD R/A 24POS 2.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX34R24HF4T

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Black
Insulation Height	13.8 mm
Insulation Height	0.543 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.087 in
Pitch - Mating	2.2 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Style	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Termination	Number of Rows	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Shape	Insulation Color	Contact Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Applications	Features
JAE Electronics MX34R24HF4T	Surface Mount Right Angle	Male Pin	0.087 in	2.2 mm	Tin	All	Board to Cable/Wire	Polyphenylene Sulfide (PPS) Glass Filled	85 °C	-40 °C	Locking Ramp	Solder	2	13.8 mm	0.543 in	3 A	Square	Black	Copper Alloy	7.7 mm	0.303 in	Header	24	3 mm	0.118 in	Shrouded - 4 Wall	Automotive	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 24 position 0.087" (2.20mm)
