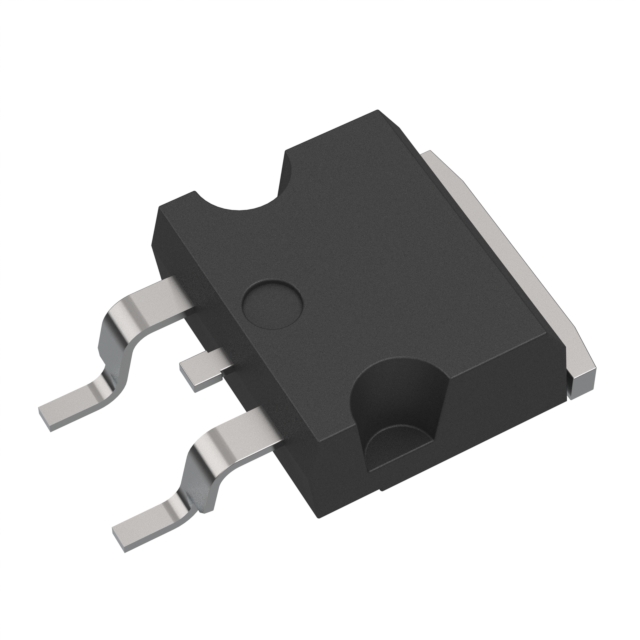

STH80N10F7-2

Obsolete

STMicroelectronics

MOSFET N-CH 100V 80A H2PAK-2

Search across all available documentation for this part.

Obsolete

STMicroelectronics

MOSFET N-CH 100V 80A H2PAK-2

Technical Specifications

Parameters and characteristics for this part

Specification	STH80N10F7-2

Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	45 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	3100 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Power Dissipation (Max) [Max]	110 W
Rds On (Max) @ Id, Vgs	9.5 mOhm
Supplier Device Package	H2Pak-2
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4.5 V

Part	Technology	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Rds On (Max) @ Id, Vgs	Package / Case	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs [Max]	Power Dissipation (Max) [Max]
STMicroelectronics STH80N10F7-2	MOSFET (Metal Oxide)	4.5 V	-55 °C	175 ░C	20 V	3100 pF	Surface Mount	N-Channel	10 V	H2Pak-2	9.5 mOhm	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	100 V	45 nC	110 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 100 V 80A (Tc) 110W (Tc) Surface Mount H2PAK-2
