IDSD-10-D-12.00-G

Active

Samtec Inc.

RIBBON CABLE, IDC RECEPTACLE TO IDC RECEPTACLE, 20 POSITIONS, 12 ", 305 MM, 2.54 MM, IDSD SERIES

Find alt

Alpha

IDSD-10-D-12.00-G

Active

Samtec Inc.

RIBBON CABLE, IDC RECEPTACLE TO IDC RECEPTACLE, 20 POSITIONS, 12 ", 305 MM, 2.54 MM, IDSD SERIES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

IDSD-10 Series

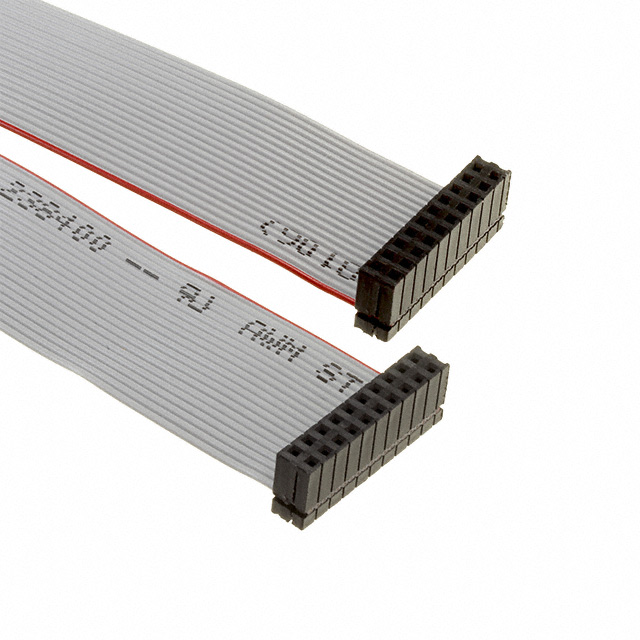

The IDSD-10-D-12.00-G from Samtec is a 0.1" (2.54mm) pitch, double row slim body IDC ribbon socket cable assembly. This cable assembly mates with shrouded terminal strips, ejector headers and locking clips. It also mates with TSW, MTSW, TSM, EJH, PHT, HMTSW, HTSW, HW, DW, EW, ZW, MTLW, TST, HTST, ZST, BST and EJH connectors.

Technical Specifications

Parameters and characteristics for this part

Specification	IDSD-10-D-12.00-G

Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Socket to Socket
Contact Finish	Gold
Length	12 in
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 in
Pitch - Connector	0.1 in
Shielding	Unshielded

IDSD-10 Series

...

Part	Length	Cable Termination	Connector Type	Pitch - Cable	Color	Shielding	Pitch - Connector	Number of Positions	Number of Rows	Contact Finish
Samtec Inc. IDSD-10-S-08.00-G-ST8	0.667 ft	IDC	Socket to Cable	0.05 in	Gray Ribbon	Unshielded	0.1 in	20	2	Gold
Samtec Inc. IDSD-10-D-02.00-R	2.004 in	IDC	Reversed Socket to Socket	0.05 in	Multiple Ribbon	Unshielded	0.1 in	20	2	Gold
Samtec Inc. IDSD-10-S-11.81	0.984 ft	IDC	Socket to Cable	0.05 in	Multiple Ribbon	Unshielded	0.1 in	20	2	Gold
Samtec Inc. IDSD-10-D-16.00-T-G	1.33 ft	IDC	Socket to Socket	0.05 in	Gray Ribbon	Unshielded	0.1 in	20	2	Tin
Samtec Inc. IDSD-10-D-09.75-G	0.813 ft	IDC	Socket to Socket	0.05 in	Gray Ribbon	Unshielded	0.1 in	20	2	Gold
Samtec Inc. IDSD-10-D-02.88	0.24 ft	IDC	Socket to Socket	0.05 in	Multiple Ribbon	Unshielded	0.1 in	20	2	Gold
Samtec Inc. IDSD-10-D-02.50-T	2.496 in	IDC	Socket to Socket	0.05 in	Multiple Ribbon	Unshielded	0.1 in	20	2	Tin
Samtec Inc. IDSD-10-D-74.00	6.17 ft	IDC	Socket to Socket	0.05 in	Multiple Ribbon	Unshielded	0.1 in	20	2	Gold
Samtec Inc. IDSD-10-D-06.00-R	0.5 ft	IDC	Reversed Socket to Socket	0.05 in	Multiple Ribbon	Unshielded	0.1 in	20	2	Gold
Samtec Inc. IDSD-10-S-24.00-G-ST4	24 in	IDC	Socket to Cable	0.05 in	Gray Ribbon	Unshielded	0.1 in	20	2	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

IDSD-10-D-12.00-G | Datasheet

IDSD Datasheet

Datasheet

Drawing EN
