IDSD-10-D-16.00-T-G

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Positions	Number of Rows	Contact Finish	Pitch - Connector	Pitch - Connector	Connector Type	Pitch - Cable	Pitch - Cable	Length	Length	Length	Cable Termination	Shielding	Color	Length [x]	Length [x]	Length [x]	Length
Samtec Inc. IDSD-10-S-08.00-G-ST8	20	2	Gold	0.1 in	2.54 mm	Socket to Cable	0.05 "	1.27 mm	0.667 ft	8 in	203.2 mm	IDC	Unshielded
Samtec Inc. IDSD-10-D-02.00-R	20	2	Gold	0.1 in	2.54 mm	Socket to Socket Reversed	0.05 "	1.27 mm	0.167 '	2 "	50.8 mm	IDC	Unshielded	Multiple Ribbon
Samtec Inc. IDSD-10-D-08.80-T-G	20	2	Tin	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	0.733 ft	8.8 in	223.52 mm	IDC	Unshielded
Samtec Inc. IDSD-10-S-11.81	20	2	Gold	0.1 in	2.54 mm	Socket to Cable	0.05 "	1.27 mm				IDC	Unshielded	Multiple Ribbon	0.984 '	11.81 "	300 mm
Samtec Inc. IDSD-10-D-16.00-T-G	20	2	Tin	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm				IDC	Unshielded		1.33 ft		406.4 mm
Samtec Inc. IDSD-10-D-09.75-G	20	2	Gold	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm		9.75 "	247.65 mm	IDC	Unshielded		0.813 ft
Samtec Inc. IDSD-10-D-06.00-R	20	2	Gold	0.1 in	2.54 mm	Socket to Socket Reversed	0.05 "	1.27 mm		6 "	152.4 mm	IDC	Unshielded	Multiple Ribbon				0.5 '
Samtec Inc. IDSD-10-S-24.00-G-ST4	20	2	Gold	0.1 in	2.54 mm	Socket to Cable	0.05 "	1.27 mm				IDC	Unshielded		2 '		609.6 mm
Samtec Inc. IDSD-10-D-08.00-P20-G	20	2	Gold	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	0.667 ft	8 in	203.2 mm	IDC	Unshielded
Samtec Inc. IDSD-10-D-06.50-R	20	2	Gold	0.1 in	2.54 mm	Socket to Socket Reversed	0.05 "	1.27 mm	0.542 ft	6.5 "	165.1 mm	IDC	Unshielded	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

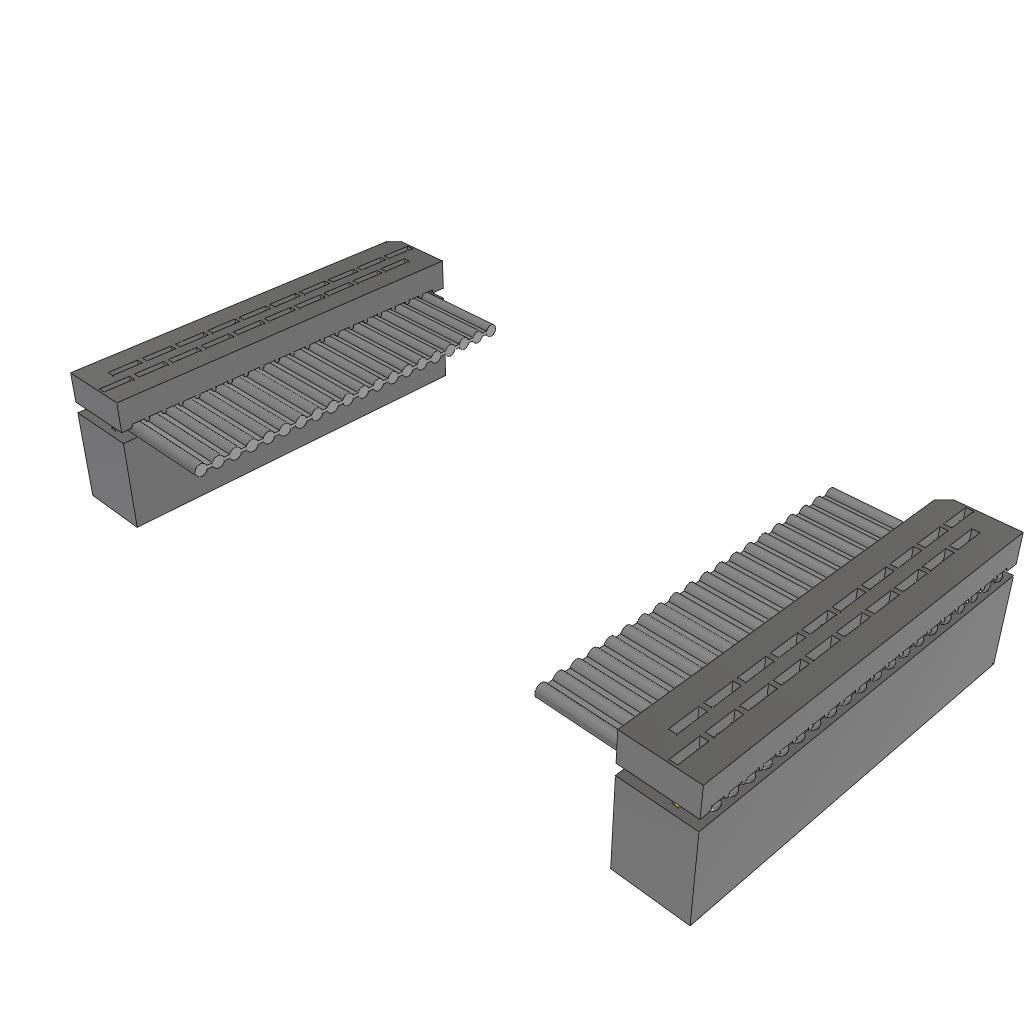

20 Position Cable Assembly Rectangular Socket to Socket 1.33' (406.40mm)
