2M1-SP4-T8-B0-M2QE

Active

Carling Technologies

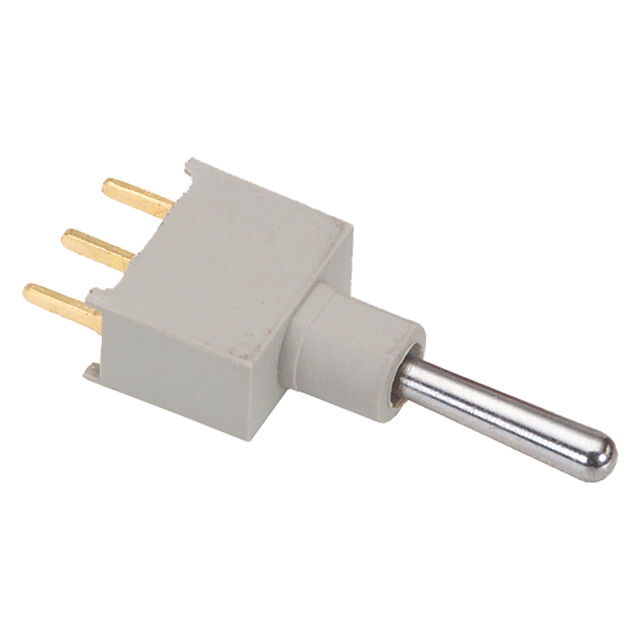

SWITCH TOGGLE SPDT 5A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE SPDT 5A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M1-SP4-T8-B0-M2QE	2M1-SP4 Series

Actuator Length	-	10.4 mm
Actuator Length [x]	17.5 mm	17.5 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Anti-Rotation	Anti-Rotation, Standard Round
Bushing Thread	15/32-32	15/32-32, Unthreaded
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	5 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	-	Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	11.91 mm	11.91 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	28 V	28 V

SWITCH TOGGLE SPDT 5A 125V

Part	Current Rating (Amps)	Features	Switch Function	Bushing Thread	Voltage Rating - DC	Termination Style	Circuit	Electrical Life	Illumination	Voltage Rating - AC	Actuator Material	Actuator Type	Ingress Protection	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Length [z]	Mounting Type
Carling Technologies 2M1-SP4-T8-B0-M2QE	5 A	Epoxy Sealed Terminals	Mom-Off-Mom	15/32-32	28 V	PC Pin	SPDT	50000 Cycles	Non-Illuminated	125 V	Brass, Chrome Plated	Anti-Rotation	IP67 - Dust Tight, Waterproof	17.5 mm	-30 ░C	85 °C	11.91 mm
Carling Technologies 2M1-SP4-T1-B4-M6QE	5 A	Epoxy Sealed Terminals	Mom-Off-Mom	Unthreaded	28 V	PC Pin	SPDT	50000 Cycles	Non-Illuminated	125 V	Brass, Chrome Plated	Standard Round	IP67 - Dust Tight, Waterproof		-30 ░C	85 °C		10.4 mm	Through Hole, Right Angle
