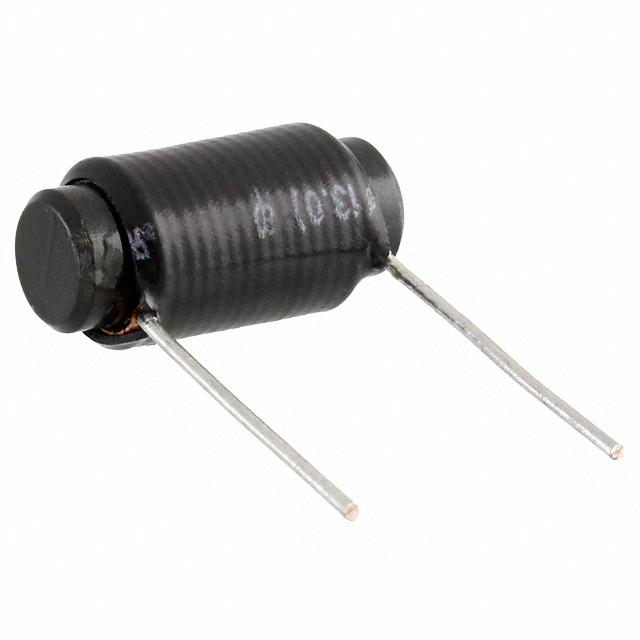

5502-RC
ObsoleteBourns Inc.
FIXED IND 10UH 9A 17 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5502-RC
ObsoleteBourns Inc.
FIXED IND 10UH 9A 17 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5502-RC |
|---|---|
| DC Resistance (DCR) | 17 mOhm |
| Inductance | 10 µH |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Horizontal Cylinder |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Size / Dimension [z] | 28.45 mm |
| Size / Dimension [z] | 1.12 in |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
5502 Series
10 µH Unshielded Drum Core, Wirewound Inductor 9 A 17mOhm Max Radial, Horizontal Cylinder
