122442RP

Active

Amphenol RF

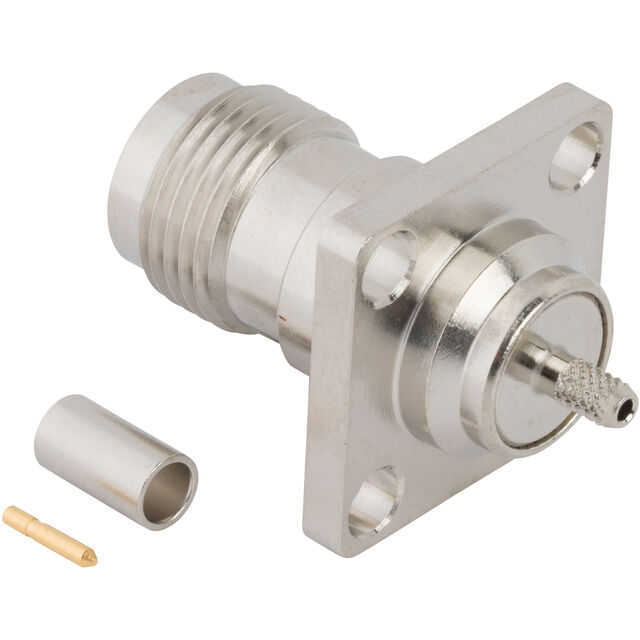

CONN RP-TNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-TNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	122442RP

Body Finish	Nickel
Body Material	Brass
Cable Group	178B, RG-178, 196A, M17/93-RG178, 196, 178A
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Feature	Housing Color	Connector Type	Connector Style	Number of Ports	Dielectric Material	Impedance	Mating Cycles	Contact Termination	Center Contact Plating	Body Material	Frequency - Max [Max]	Center Contact Material	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Includes	Cable Group
Amphenol RF 122442RP	Flange	Silver	Jack Male Pin	RP-TNC	1	Polytetrafluoroethylene (PTFE)	50 Ohms	500	Crimp	Gold	Brass	11 GHz	Brass Phosphor Bronze	Crimp	Nickel	-65 ░C	165 °C	500 V	1 Connector 1 Contact 1 Ferrule	178A 178B 196 196A M17/93-RG178 RG-178

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
