164A16579X

Active

Amphenol CONEC

D SUB CONN, RCPT, DA, SOLDER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB CONN, RCPT, DA, SOLDER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	164A16579X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

Part	Current Rating (Amps)	Connector Style	Shell Size, Connector Layout	Number of Positions	Material Flammability Rating	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Mounting Type	Termination	Voltage Rating	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Dielectric Material	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Amphenol CONEC 164A16599X	7.5 A	D-Sub	4 (DC C)	37	UL94 V-0	Signal	Gold	8 çin	0.203 çm	Black	2	Through Hole	Solder	125 VDC	4-40 Board Side	-55 °C	125 °C	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy
Amphenol CONEC 164A16569X	7.5 A	D-Sub		9	UL94 V-0	Signal	Gold	8 çin	0.203 çm	Black	2	Through Hole	Solder	125 VDC	4-40 Board Side	-55 °C	125 °C	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	DE E	1
Amphenol CONEC 164A16579X	7.5 A	D-Sub		15	UL94 V-0	Signal	Gold	8 çin	0.203 çm	Black	2	Through Hole	Solder	125 VDC	4-40 Board Side	-55 °C	125 °C	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy			2
Amphenol CONEC 164A16589X	7.5 A	D-Sub			UL94 V-0	Signal	Gold	8 çin	0.203 çm	Black	2	Through Hole	Solder	125 VDC	4-40 Board Side	-55 °C	125 °C	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	B DB	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

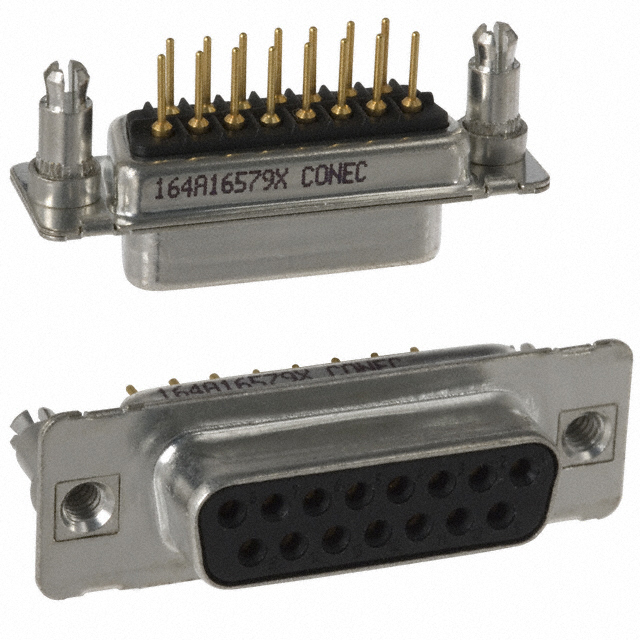

15 Position D-Sub Receptacle, Female Sockets Connector
