RB55P14G28G

Active

Serpac

BOX PLASTIC GRAY

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	RB55P14G28G

Area (L x W)	144 cm²
Area (L x W)	22.3 in²
Color	Gray
Container Type	Box
Design	Cover Included
Height [diameter]	104.9 mm
Height [diameter]	4.13 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

Part	Design	Color	Material Flammability Rating	Container Type	Material	Height [z]	Height [z]	Thickness	Thickness	Area (L x W)	Area (L x W)	Ratings	Height [diameter]	Height [diameter]
Serpac RB55P14G16G	Cover Included	Gray	UL94 V-0	Box	Plastic Polycarbonate	2.95 "	74.93 mm	0.12 in	3.05 mm	144 cm²	22.3 in²	IP67 NEMA 4
Serpac RB55P14G28G	Cover Included	Gray	UL94 V-0	Box	Plastic Polycarbonate			0.12 in	3.05 mm	144 cm²	22.3 in²	IP67 NEMA 4	104.9 mm	4.13 in
Serpac RB55P14G10G	Cover Included	Gray	UL94 V-0	Box	Plastic Polycarbonate	2.38 in	60.45 mm	0.12 in	3.05 mm	144 cm²	22.3 in²	IP67 NEMA 4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

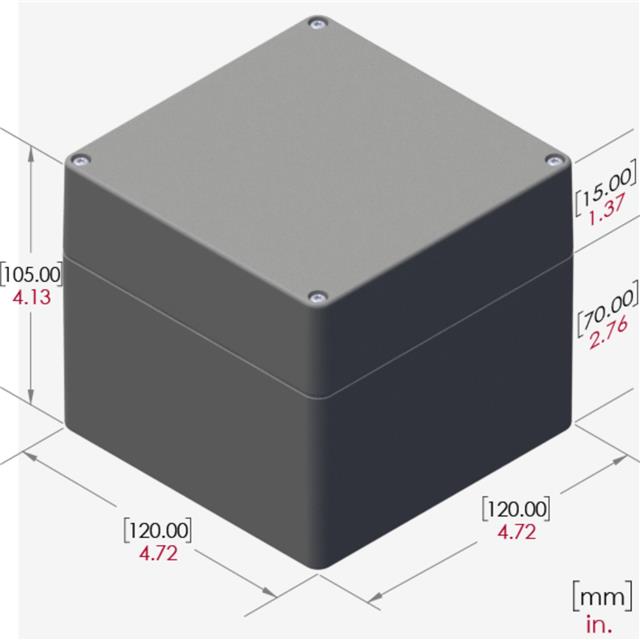

Box Plastic, Polycarbonate Gray Cover Included X 4.130" (104.90mm)
