325210-20-0
ActiveCurtis Industries

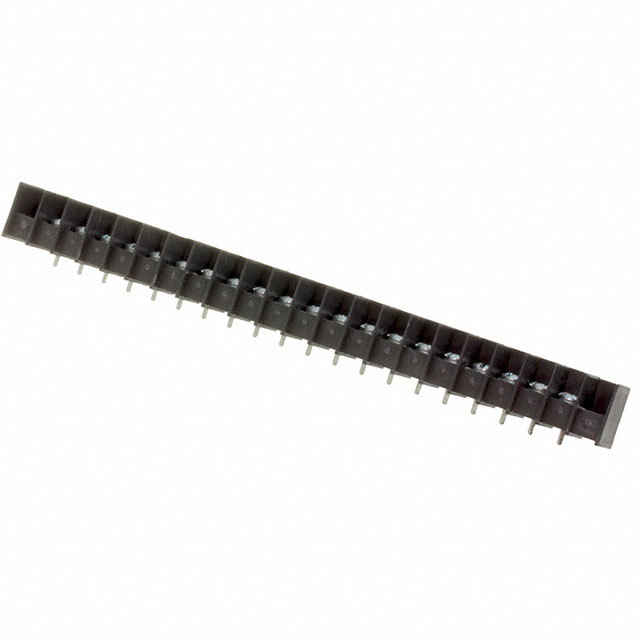

CONN BARRIER STRP 20CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325210-20-0
ActiveCurtis Industries
CONN BARRIER STRP 20CIRC 0.325"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325210-20-0 | 325210 Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 20 | 2 - 24 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 20 | 2 - 20 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.57 | |
| 10 | $ 11.94 | |||
| 30 | $ 11.26 | |||
| 50 | $ 10.72 | |||
| 100 | $ 10.51 | |||
| 250 | $ 9.16 | |||
| 500 | $ 8.82 | |||
| 1000 | $ 8.48 | |||
325210 Series
CONN BARRIER STRP 24CIRC 0.325"
| Part | Terminal Block Type | Barrier Type | Material Flammability Rating | Number of Rows | Mounting Type | Number of Circuits | Voltage Rating | Operating Temperature | Top Termination | Bottom Termination | Pitch [x] | Pitch [x] | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) | Features | Terminal Screw Material | Material - Insulation | Number of Wire Entries | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325210-24-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 24 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | ||
Curtis Industries 325210-19-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 19 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 19 | |
Curtis Industries 325210-03-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 3 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 3 | |
Curtis Industries 325210-15-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 15 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 15 | |
Curtis Industries 325210-20-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 20 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 20 | |
Curtis Industries 325210-10-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 10 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 10 | |
Curtis Industries 325210-12-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 12 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 12 | |
Curtis Industries 325210-16-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 16 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 16 | |
Curtis Industries 325210-09-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 9 | ||
Curtis Industries 325210-05-0 | Barrier Block | 3 Wall (Tri) | UL94 V-0 | 1 | Chassis, Panel, Through Hole | 5 | 300 VDC | 105 C | Screws | PC Pin | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 15 A | Flange | Steel | Polypropylene (PP) | 5 |
Description
General part information
325210 Series
20 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
