Connectors, Interconnects

796096-2

Active

TE Connectivity Raychem Cable Protection

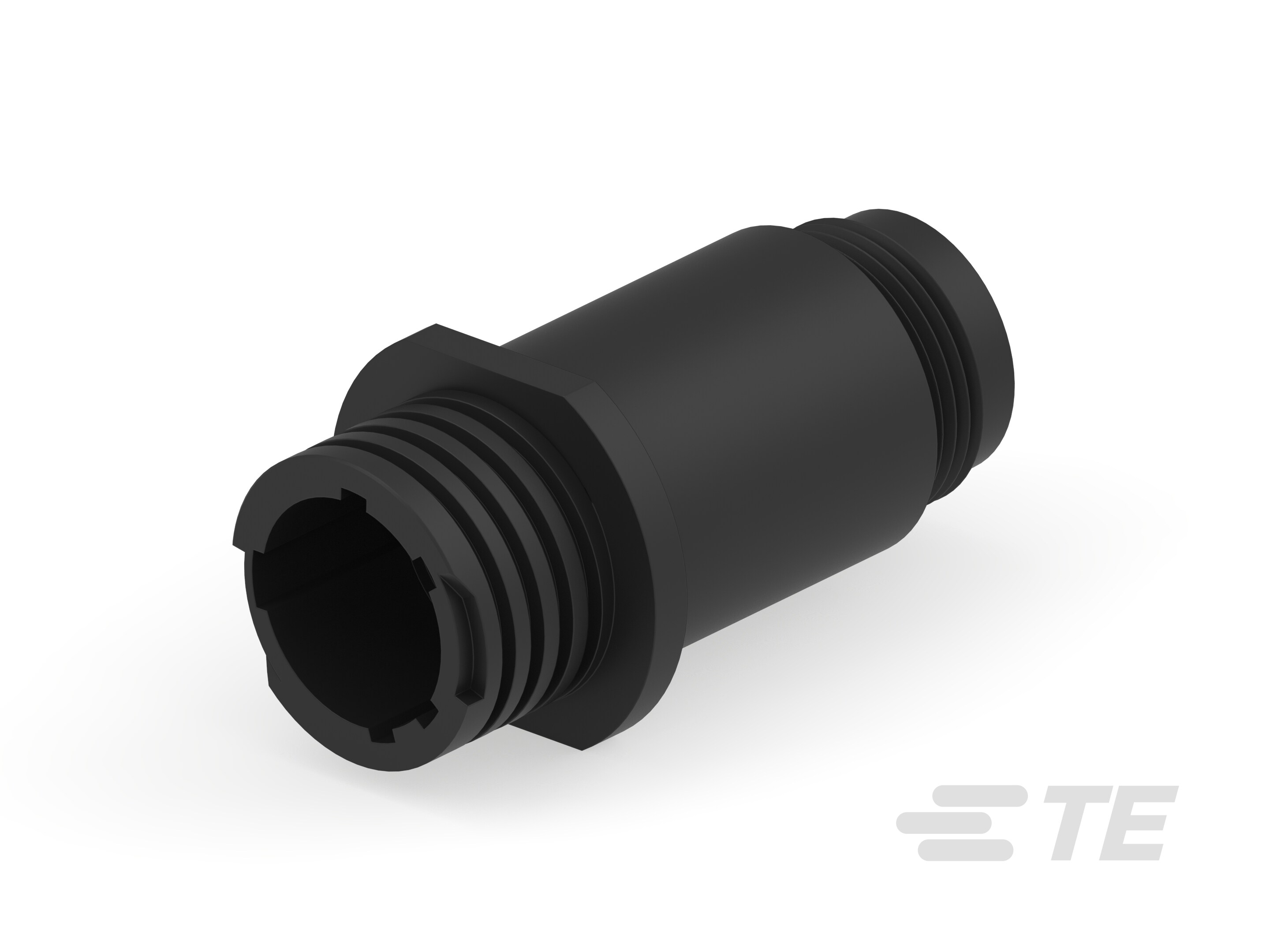

CIRCULAR CONNECTOR HOUSING, CPC SERIES 1, RECEPTACLE, 4, PIN, CABLE MOUNT, 11-4 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CIRCULAR CONNECTOR HOUSING, CPC SERIES 1, RECEPTACLE, 4, PIN, CABLE MOUNT, 11-4 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	796096-2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	11-4
Shielding	Unshielded
Type	For Male Pins

Part	Insert Material	Number of Positions	Shielding	Type	Contact Size	Note	Ingress Protection	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Mounting Type	Connector Type	Orientation	Contact Type	Material Flammability Rating	Shell Size - Insert
TE Connectivity Raychem Cable Protection 796096-2	Thermoplastic	4	Unshielded	For Male Pins	16	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular	105 ░C	-55 °C	Black	Free Hanging (In-Line)	Receptacle Housing	Keyed	Crimp	UL94 V-0	11-4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
