M80-9402042

Active

Harwin Inc.

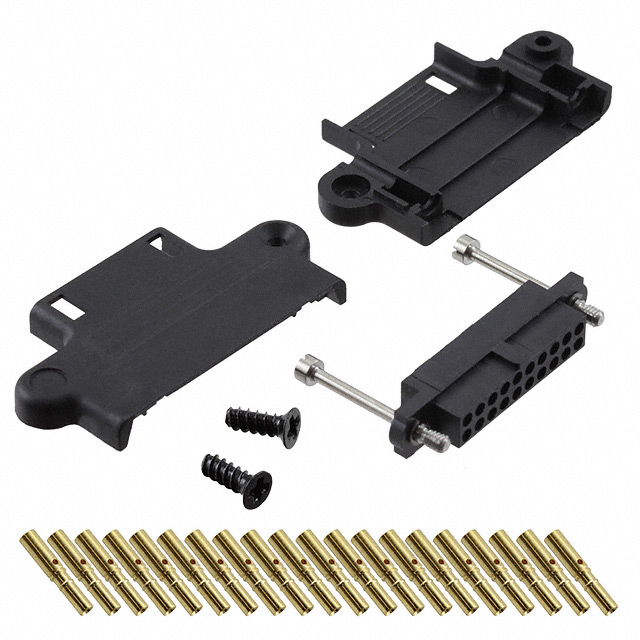

10+10 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80, M83 Series Spec Sheet +2

M80-9402042

Active

Harwin Inc.

10+10 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M80, M83 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-9402042

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Cable Hood Kit, Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

M80-940 Series

Part	Mounting Type	Features	Contact Finish	Connector Type	Row Spacing	Row Spacing	Wire Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Number of Positions	Color	Contact Type	Cable Termination
Harwin Inc. M80-9401005	Free Hanging (In-Line)	Cable Hood Kit Jackscrews	Gold	Receptacle	2 mm	0.079 in	Discrete	2	0.3 Ám	11.8 Áin	24 AWG	28 AWG	0.079 in	2 mm	10	Black	Female Socket	Crimp
Harwin Inc. M80-9401242	Free Hanging (In-Line)	Cable Hood Kit Jackscrews	Gold	Receptacle	2 mm	0.079 in	Discrete	2	0.3 Ám	11.8 Áin	24 AWG	28 AWG	0.079 in	2 mm	12	Black	Female Socket	Crimp
Harwin Inc. M80-9402605	Free Hanging (In-Line)	Cable Hood Kit Jackscrews	Gold	Receptacle	2 mm	0.079 in	Discrete	2	0.3 Ám	11.8 Áin	24 AWG	28 AWG	0.079 in	2 mm	26	Black	Female Socket	Crimp
Harwin Inc. M80-9404205	Free Hanging (In-Line)	Cable Hood Kit Jackscrews	Gold	Receptacle	2 mm	0.079 in	Discrete	2	0.3 Ám	11.8 Áin	24 AWG	28 AWG	0.079 in	2 mm	42	Black	Female Socket	Crimp
Harwin Inc. M80-9400642	Free Hanging (In-Line)	Cable Hood Kit Jackscrews	Gold	Receptacle	2 mm	0.079 in	Discrete	2	0.3 Ám	11.8 Áin	24 AWG	28 AWG	0.079 in	2 mm	6	Black	Female Socket	Crimp
Harwin Inc. M80-9402042	Free Hanging (In-Line)	Cable Hood Kit Jackscrews	Gold	Receptacle	2 mm	0.079 in	Discrete	2	0.3 Ám	11.8 Áin	24 AWG	28 AWG	0.079 in	2 mm	20	Black	Female Socket	Crimp
Harwin Inc. M80-9405005	Free Hanging (In-Line)	Cable Hood Kit Jackscrews	Gold	Receptacle	2 mm	0.079 in	Discrete	2	0.3 Ám	11.8 Áin	24 AWG	28 AWG	0.079 in	2 mm	50	Black	Female Socket	Crimp
Harwin Inc. M80-9403405	Free Hanging (In-Line)	Cable Hood Kit Jackscrews	Gold	Receptacle	2 mm	0.079 in	Discrete	2	0.3 Ám	11.8 Áin	24 AWG	28 AWG	0.079 in	2 mm	34	Black	Female Socket	Crimp
