Q-0F031000H0.5M

Active

Amphenol Custom Cable

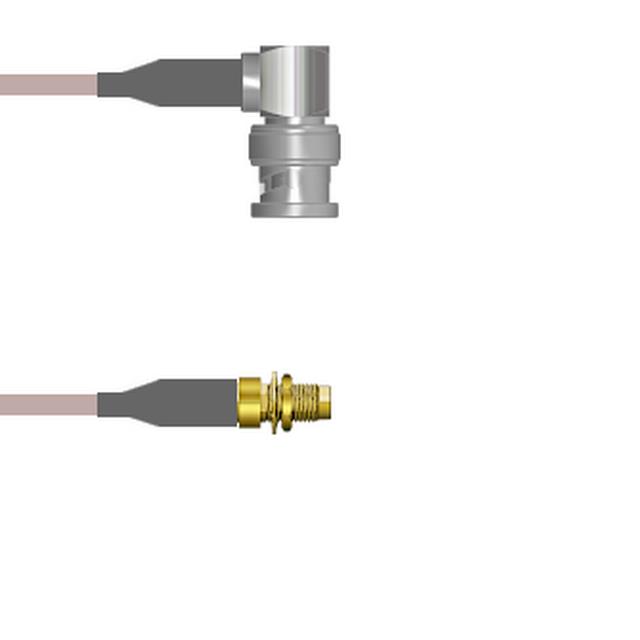

CBL ASSY BNC-SMA PLG-JACK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F031000H0.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLG-JACK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F031000H0.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0F0310 Series

Part	1st Connector	Overall Impedance	Frequency - Max [Max]	Features	1st Connector Mounting Type	Cable Type	Color	Style	1st Contact Gender	2nd Contact Gender	2nd Connector Mounting Type	2nd Connector Mounting Feature	Length	Length	2nd Connector	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-0F031000H006i	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut	152.4 mm	6 in	SMA Jack
Amphenol Custom Cable Q-0F031000H024i	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut	609.6 mm	24 "	SMA Jack
Amphenol Custom Cable Q-0F031000H.25M	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut			SMA Jack	9.843 "	250 mm
Amphenol Custom Cable Q-0F031000H.75M	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut	750 mm	29.53 "	SMA Jack
Amphenol Custom Cable Q-0F031000H2.5M	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut	2.5 m	98.4 in	SMA Jack			8.2 '
Amphenol Custom Cable Q-0F031000H048i	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut	1200 mm	48 in	SMA Jack			4 ft
Amphenol Custom Cable Q-0F031000H018i	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut			SMA Jack		457.2 mm		457.2 mm
Amphenol Custom Cable Q-0F031000H060i	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut	1.5 m	5 '	SMA Jack			5 ft
Amphenol Custom Cable Q-0F031000H072i	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut	1.8 m	72 in	SMA Jack			6 ft
Amphenol Custom Cable Q-0F031000H0.5M	BNC Plug Right Angle	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	RG-142	Copper	BNC to SMA	Male	Female	Panel Mount	Bulkhead - Front Side Nut	50 cm	19.69 "	SMA Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 128.22
		25	$ 125.72
		50	$ 123.21
		100	$ 120.70
		250	$ 118.19

Description

General part information

Q-0F0310 Series

Cable Assembly Coaxial BNC to SMA RG-142 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
