CMLS104T-3R3MS

Active

Delta Electronics/Cyntec

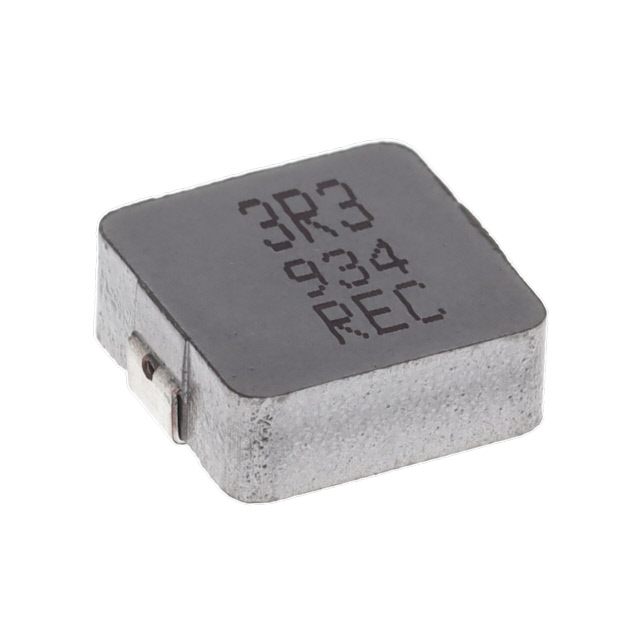

FIXED IND 3.3UH 10.7A 11.8 MOHM

Deep-Dive with AI

Search across all available documentation for this part.

CMLS104T-3R3MS

Active

Delta Electronics/Cyntec

FIXED IND 3.3UH 10.7A 11.8 MOHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMLS104T-3R3MS	CMLS104T Series

Current - Saturation (Isat)	21 A	17 - 90 A
Current Rating (Amps)	10.7 A	9.6 - 52 A
DC Resistance (DCR)	-	0.65 - 1.25 mOhm
DC Resistance (DCR) [Max]	11.8 mOhm	0.95 - 16.5 mOhm
Height - Seated (Max) [Max]	0.157 in	0.157 in
Height - Seated (Max) [Max]	4 mm	4 mm
Inductance	3.3 µH	1 - 560 nH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Metal	Metal
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	0.427 "	0.427 - 0.439 in
Size / Dimension [x]	10.85 mm	10.85 - 11.15 mm
Size / Dimension [y]	10 mm	10 mm
Size / Dimension [y]	0.394 in	0.394 in
Tolerance	20 %	20 %

CMLS104T Series

FIXED IND 220NH 40A 0.95MOHM SMD

Part	Inductance	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Shielding	DC Resistance (DCR) [Max]	Current Rating (Amps)	Material - Core	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)
Delta Electronics/Cyntec CMLS104T-R22MS	220 nH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	0.95 mOhm	40 A	Metal	75 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-1R0MS	1 µH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	3.2 mOhm	20 A	Metal	36 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-R36MS	360 nH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded		30 A	Metal	60 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C	1.25 mOhm
Delta Electronics/Cyntec CMLS104T-2R2MS	2.2 µH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded		12.5 Amps	Metal	23 A	0.427 "	10.85 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-1R5MS	1.5 µH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	4.2 mOhm	16 A	Metal	33 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-4R7MS	4.7 ÁH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	16.5 mOhm	9.6 A	Metal	17 A	0.427 "	10.85 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-3R3MS	3.3 µH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	11.8 mOhm	10.7 A	Metal	21 A	0.427 "	10.85 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-R56MS	560 nH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	1.8 mOhm	25 A	Metal	40 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-R15MS	150 nH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded		52 A	Metal	90 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C	0.65 mOhm
