009162006401070

Active

Kyocera AVX

FYE INDUSTRIAL - FALCON / TAPE/REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Kyocera AVX

FYE INDUSTRIAL - FALCON / TAPE/REEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Feature	Mounting Type	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board	Height Above Board [z]	Insertion, Removal Method	Connector Type	Height Above Board	Height Above Board [z]	Features
Kyocera AVX 009162006401070	Normal Standard - Top	Surface Mount Right Angle	Gold	SIM Card	15 µin	0.38 µm	6	1.6 mm	0.063 in	Pull Out Push In
Kyocera AVX 009162006216175	Normal Standard - Top	Surface Mount Right Angle	Gold	Mini SIM			6			Pull Out Push In
Kyocera AVX 009162006301150	Normal Standard - Top	Surface Mount Right Angle	Gold	SIM Card			6	2.5 mm		Hinged Lid	Connector and Ejector	0.098 in
Kyocera AVX 009162006501150	Normal Standard - Top	Surface Mount Right Angle	Gold	Combo - microSD™ SIM			6		0.106 in	Multiple	Connector and Ejector		2.7 mm	Board Guide
Kyocera AVX 009162006206175	Normal Standard - Top	Surface Mount Right Angle	Gold	SIM Card			6			Pull Out Push In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

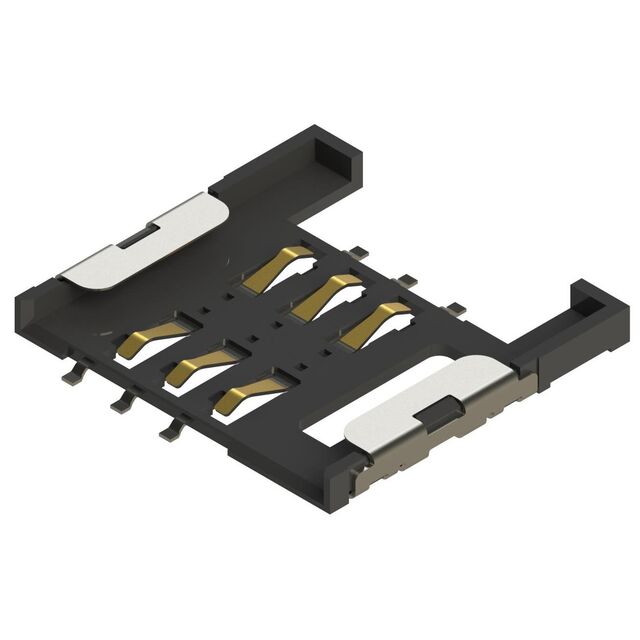

6 Position Card Connector SIM Card Surface Mount, Right Angle Gold
