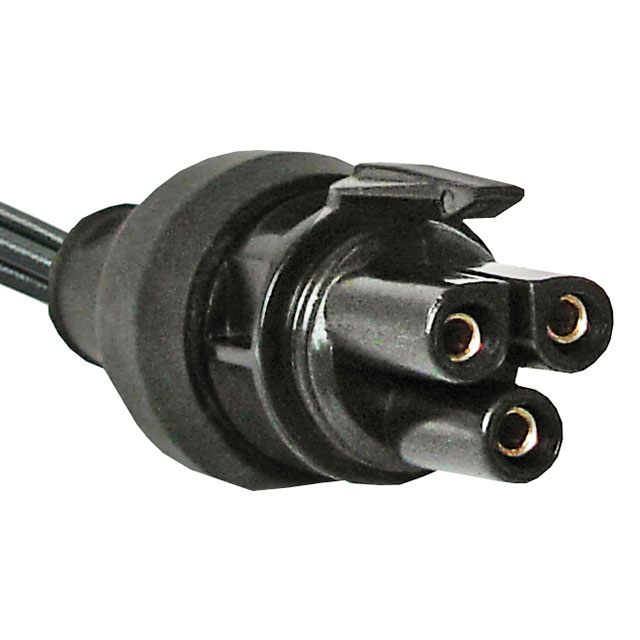

SK1-016M03

Active

Anderson Power Products, Inc.

CONN RCPT HSG MALE 3POS INLINE

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN RCPT HSG MALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SK1-016M03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Holder
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	16-3
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSG MALE 3POS INLINE

Part	Insert Material	Features	Note	Fastening Type	Type	Shielding	Number of Positions	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Ingress Protection	Shell Material	Contact Shape	Connector Type	Material Flammability Rating	Mounting Type	Shell Size - Insert	Orientation
Anderson Power Products, Inc. SK1-016M03	Polycarbonate (PC)	Backshell	Contacts Not Included	Latch Holder	For Male Pins	Unshielded	3	Black	-20 C	105 ░C	Crimp	IP68 - Dust Tight, Waterproof	Polycarbonate (PC)	Circular	Receptacle Housing	UL94 V-0	Free Hanging (In-Line)	16-3	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
