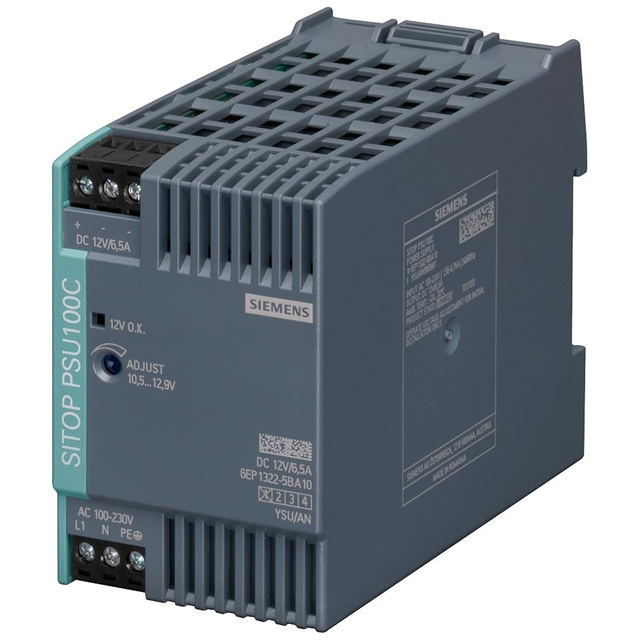

6EP13225BA10

Active

Siemens

AC/DC DIN RAIL SUPPLY 12V 78W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 12V 78W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP13225BA10

AC Voltage - Input [Max]	230 VAC, 264 VAC
AC Voltage - Input [Min]	85 VAC, 100 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CSA, cCSAus, cULus, UL, cUL, CB, CE
Current - Output (Max) [Max]	6.5 A
DC Voltage - Input (Max) [Max]	300 V
DC Voltage - Input (Min) [Min]	110 V
Efficiency	86 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	78 W
Size / Dimension [x]	3.94 in
Size / Dimension [x]	100 mm
Size / Dimension [y]	2.07 in
Size / Dimension [y]	52.5 mm
Size / Dimension [z]	3.15 "
Size / Dimension [z]	80 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	12 V

Part	Applications	Input Type	Standard Number	Power (Watts)	Efficiency	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Number of Outputs	Approval Agency	DC Voltage - Input (Min) [Min]	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]
Siemens 6EP13225BA10	Hazardous Locations Industrial ITE (Commercial)	AC or DC	60950-1 UL 508	78 W	86 %	6.5 A	300 V	-20 °C	70 °C	3.15 "	2.07 in	3.94 in	80 mm	52.5 mm	100 mm	12 V	1	CB cCSAus CE CSA cUL cULus UL	110 V	Adjustable Output IP20 Universal Input	85 VAC 100 VAC	230 VAC 264 VAC
