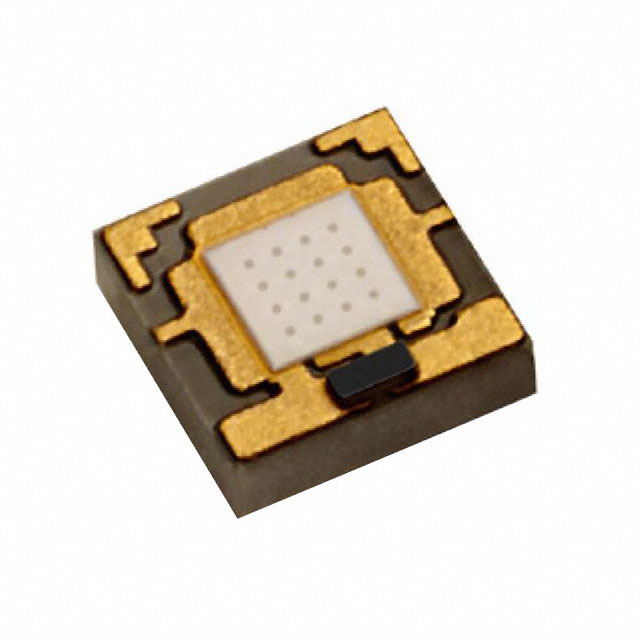

L1CU-GRN1000000000

Active

Lumileds

A GREEN CCT 520NM-540NM CRI N/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLUXEON CZ Brief Datasheet

L1CU-GRN1000000000

Active

Lumileds

A GREEN CCT 520NM-540NM CRI N/A

Deep-Dive with AI

DocumentsLUXEON CZ Brief Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.36
		10	$ 1.57
		100	$ 1.21
		500	$ 1.10
	Digi-Reel®	1	$ 2.36
		10	$ 1.57
		100	$ 1.21
		500	$ 1.10
	Tape & Reel (TR)	1000	$ 0.94
		2000	$ 0.89
		5000	$ 0.87
		10000	$ 0.86

Description

General part information

L1CU Series

LED Lighting Color LUXEON CZ Green 530nm (520nm ~ 540nm) 3-SMD, No Lead

Documents

Technical documentation and resources

LUXEON CZ Brief

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L1CU-GRN1000000000	L1CU Series

CCT (K)	-	2200 - 6500 K
Color	Green	White, Warm, Green, Neutral, Lime, Cool, Amber, Red, Red-Orange, Blue
CRI (Color Rendering Index)	-	70 - 90
Current - Max [Max]	1.05 A	1.05 - 700 mA
Current - Test	350 mA	350 mA
Flux @ 85°C, Current - Test	-	74 - 110 lm
Height - Seated (Max) [Max] [z]	0.92 mm	0.92 mm
Height - Seated (Max) [Max] [z]	0.036 in	0.036 in
Lumens/Watt @ Current - Test	93 lm/W	22 - 133 lm/W
Luminous Flux @ Current/Temperature	99 lm	16 - 260 lm
Luminous Flux @ Current/Temperature	-	280 mW
Luminous Flux @ Current/Temperature	-	150 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3-SMD, No Lead	2-SMD, No Lead Exposed Pad, 3-SMD, No Lead
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.079 in
Supplier Device Package	3-SMD	2-SMD, 3-SMD, SMD
Temperature - Test	85 °C	85 °C
Thermal Resistance of Package	-	3.2 °C/W
Thermal Resistance of Package [custom]	4 °C/W	4 °C/W
Viewing Angle	120 °	120 - 123 °
Voltage - Forward (Vf) (Typ)	3.05 V	1.9 - 3.08 V
Wavelength	530 nm	530 - 619 nm
Wavelength [Max]	540 nm	540 - 624 nm
Wavelength [Min]	520 nm	520 - 614 nm

L1CU Series

LED CHIP WARM WHITE 2700K 1225MA 2-PIN SMD T/R

Part	Supplier Device Package	Package / Case	CRI (Color Rendering Index)	Color	Current - Max [Max]	CCT (K)	Current - Test	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Thermal Resistance of Package	Temperature - Test	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [custom]	Wavelength [Max]	Wavelength [Min]	Wavelength
Lumileds L1CU-2790000000000	2-SMD	2-SMD, No Lead Exposed Pad	90	Warm, White	1.225 mA	2700 K	350 mA	77 lm/W	74 lm	2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °	3.2 °C/W
Lumileds L1CU-GRN1000000000	3-SMD	3-SMD, No Lead		Green	1.05 A		350 mA	93 lm/W		2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	3.05 V	120 °		85 °C	99 lm	4 °C/W	540 nm	520 nm	530 nm
Lumileds L1CU-3580000000000	2-SMD	2-SMD, No Lead Exposed Pad	80	Warm, White	1.225 mA	3500 K	350 mA	110 lm/W	106 lm	2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °	3.2 °C/W
Lumileds L1CU-4090000000000	2-SMD	2-SMD, No Lead Exposed Pad	90	Neutral, White	1.225 mA	4000 K	350 mA	92 lm/W	89 lm	2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °	3.2 °C/W
Lumileds L1CU-LME1000000000	3-SMD	3-SMD, No Lead		Lime	1.05 A		350 mA			2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in		120 °		85 °C	122 lm
Lumileds L1CU-6570000000000	3-SMD	3-SMD, No Lead	70	Cool, White	1.225 A	6500 K	350 mA			2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °
Lumileds L1CU-AMB1000000000	2-SMD	2-SMD, No Lead Exposed Pad		Amber	1.05 A		350 mA	22 lm/W		2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.05 V	120 °		85 °C	16 lm				593 nm
Lumileds L1CU-2280000000000	2-SMD	2-SMD, No Lead Exposed Pad	80	Warm, White	1.225 mA	2200 K	350 mA	92 lm/W	89 lm	2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °	3.2 °C/W
Lumileds L1CU-DRD1000000000	2-SMD	2-SMD, No Lead Exposed Pad		Red	700 mA		350 mA			2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.05 V	120 °		85 °C	260 mW
Lumileds L1CU-RNG1000000000	SMD	2-SMD, No Lead Exposed Pad		Red-Orange	1.05 A		350 mA	47 lm/W		2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.05 V	120 °		85 °C	34 lm		624 nm	614 nm	619 nm
