CABLE COAX COMPOSITE RG59 2/18 5

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAX COMPOSITE RG59 2/18 5

Technical Specifications

Parameters and characteristics for this part

Specification	549945 010500

Cable Group	RG-59
Cable Type	Coaxial, Twisted Pair - Combo
Conductor Material	Copper, Bare
Conductor Strand	26 AWG
Conductor Strand	Solid
Conductor Strand [custom]	7
Dielectric Diameter	0.145 ", 0.059 "
Dielectric Diameter	1.5 mm, 3.68 mm
Dielectric Material	Foam High Density Polyethylene (FHDPE), Polypropylene (PP)
Impedance	75 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Material	Copper, Bare
Usage	CCTV
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG (2), 20 AWG

Part	Impedance	Dielectric Diameter	Dielectric Diameter	Shield Material	Conductor Material	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Cable Group	VoP, Velocity of Propagation	Wire Gauge	Jacket (Insulation) Material	Dielectric Material	Jacket Color	Conductor Strand [custom]	Conductor Strand	Conductor Strand	Cable Type
Belden Inc. 549945 010500	75 Ohms	0.059 " 0.145 "	1.5 mm 3.68 mm	Copper Bare	Copper Bare	CCTV	-30 ░C	80 C	152.4 m	6000 in	RG-59	83	18 AWG (2) 20 AWG	Poly-Vinyl Chloride (PVC)	Foam High Density Polyethylene (FHDPE) Polypropylene (PP)	Black	7	26 AWG	Solid	Coaxial Twisted Pair - Combo

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

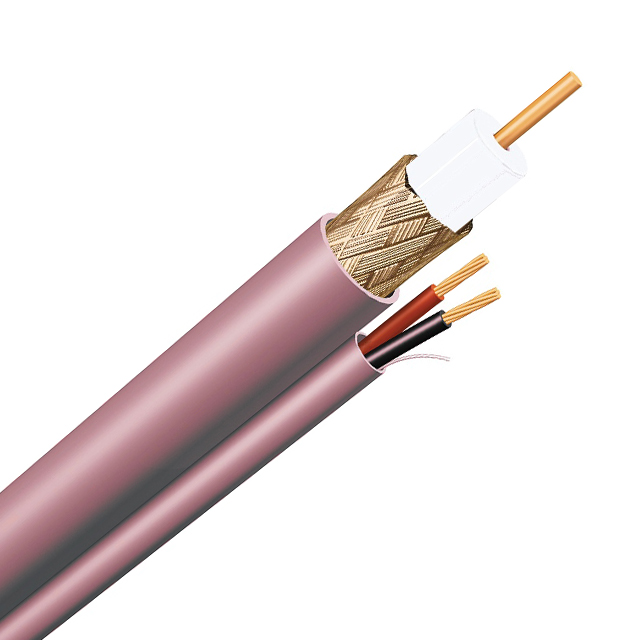

Coaxial, Twisted Pair - Combo Cable 20 AWG, 18 AWG (2) RG-59 500.0' (152.40m) 75 Ohms
