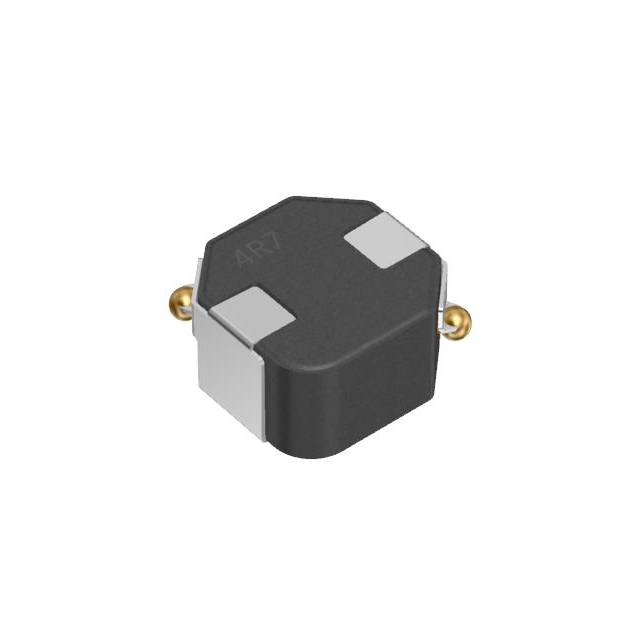

SPM5030VT-4R7M-D
ActiveEPCOS - TDK Electronics
FIXED IND 4.7UH 3.8A 0.0591OHM
Deep-Dive with AI
Search across all available documentation for this part.
SPM5030VT-4R7M-D
ActiveEPCOS - TDK Electronics
FIXED IND 4.7UH 3.8A 0.0591OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM5030VT-4R7M-D |
|---|---|
| Current - Saturation (Isat) | 5.9 A |
| Current Rating (Amps) | 3.8 A |
| DC Resistance (DCR) | 59.1 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.209 " |
| Size / Dimension [x] | 5.3 mm |
| Size / Dimension [y] | 5.1 mm |
| Size / Dimension [y] | 0.201 " |
| Supplier Device Package | 5030 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.02 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.57 | |||
| Digi-Reel® | 1 | $ 1.22 | ||
| 10 | $ 0.95 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.57 | |||
| Tape & Reel (TR) | 2000 | $ 0.54 | ||
| 4000 | $ 0.50 | |||
| 6000 | $ 0.49 | |||
| 10000 | $ 0.47 | |||
Description
General part information
SPM5030VT Series
4.7 µH Shielded Drum Core, Wirewound Inductor 3.8 A 59.1mOhm Nonstandard
Documents
Technical documentation and resources
No documents available
